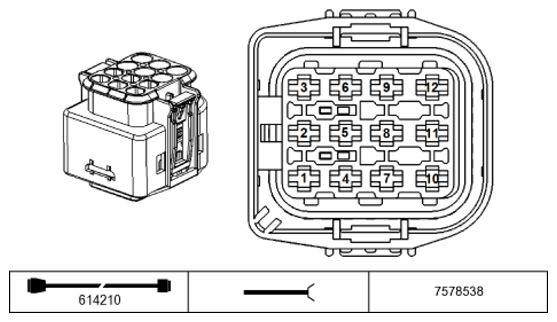

Digital Motor Electronics A46*5B Connector End View
Pin Assignments At Plug Connector A46*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Supply Ignition | Integrated supply module |
| 2 | E | Supply, terminal 15 | Integrated supply module |
| 3 | E | Supply, terminal 15 | Integrated supply module |
| 4 | M | Ground | Ground point |
| 5 | M | Ground | Ground point |
| 6 | E | Supply, terminal 15 | Integrated supply module |
| 7 | A | Activation Load shedding relay for ignition and fuel injection | Integrated supply module |
| 8 | M | Ground | Ground point |
| 9 | M | Ground | Ground point |
| 10 | E | Supply Fuel injectors | Integrated supply module |
| 11 | E | Supply Valvetronic | Integrated supply module |
| 12 | A | Activation Valvetronic relay | Integrated supply module |
