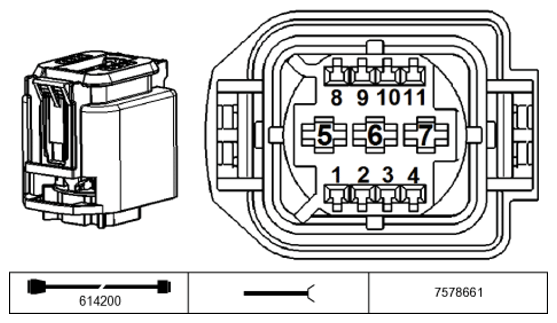

Digital Motor Electronics A46*4B Connector End View
Pin Assignments At Plug Connector A46*4B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Signal Motor position sensor | Valvetronic actuator motor |
| 2 | E | Signal Motor position sensor | Valvetronic actuator motor |
| 3 | E | Signal Motor position sensor | Valvetronic actuator motor |
| 4 | -- | Not used | |
| 5 | A | Activation Valvetronic actuator motor | Valvetronic actuator motor |
| 6 | A | Activation Valvetronic actuator motor | Valvetronic actuator motor |
| 7 | A | Activation Valvetronic actuator motor | Valvetronic actuator motor |
| 8 | E | Signal Motor position sensor | Valvetronic actuator motor |
| 9 | E | Signal Motor position sensor | Valvetronic actuator motor |
| 10 | M | Ground Motor position sensor | Valvetronic actuator motor |
| 11 | A | Supply Motor position sensor | Valvetronic actuator motor |
