61 35 953 Removing and installing/replacing interior antenna for Comfort Access (front storage compartment)

Preliminary work needed:

• Remove complete center console

Removal:

Release detents on holder.

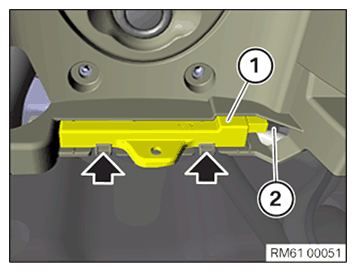

Remove interior antenna for Comfort Access (1) from holder.

Unlock and disconnect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (2).

Join interior antenna for Comfort Access (1) in holder.

Installation note:

Ensure interior antenna for Comfort Access (1) engages correctly in holder.

Courtesy of BMW OF NORTH AMERICA, INC.
