61 31 052 Removing and installing/replacing center console control panel

Preliminary work needed:

Removal:

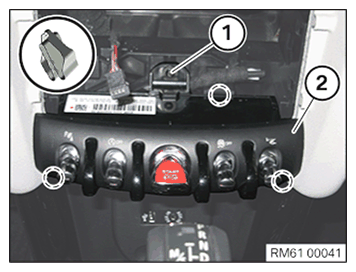

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw (1).

Unclip center console control panel (2) from center console.

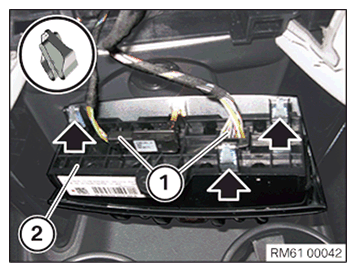

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) on center console control panel (2).

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) to center console control panel (2).

NOTE: Clamps on center console control panel (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip center console control panel (2) into center console.

Tighten screw (1).

Tightening torque 61 31 4AZ.
