61 31 037 Removing and installing/replacing light control unit

NOTE: When carrying out repair work on trim panels, make sure that the sensitive surfaces are not scratched or damaged.

Preliminary work needed:

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

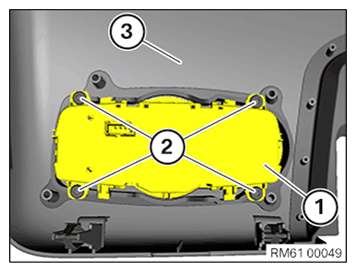

Loosen the screws (2) on the light operating unit (1).

Remove the light operating unit (1) from the bottom instrument panel trim panel (3).

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the light operating unit (1) into the bottom instrument panel trim panel (3).

Tighten down screws (2).

Tightening torque 61 31 1AZ.
