61 13... In-line plugs, 6- to 50-pin, System Elo

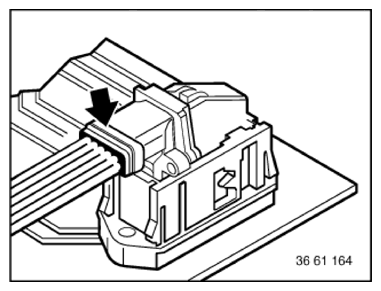

Open lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable tie.

Installation note:

Cable tie must be reinstalled.

Courtesy of BMW OF NORTH AMERICA, INC.

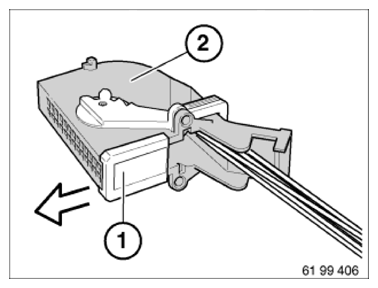

Detach catch (1) from connector housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

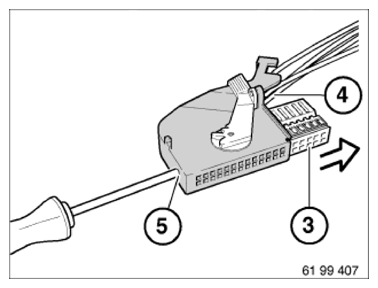

Press out contact carrier (3) with wiring harness (4) through opening (5).

Courtesy of BMW OF NORTH AMERICA, INC.

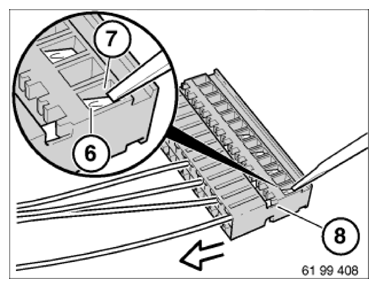

Hold down safety catch (6) of defective contact and pull cable and contact up to secondary lock (8).

Courtesy of BMW OF NORTH AMERICA, INC.

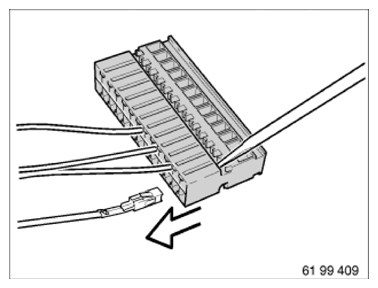

Hold down safety catch once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Courtesy of BMW OF NORTH AMERICA, INC.
