Media test

After successful connection to an ISID, the IMIB makes various media files available via USB.

Select CD/Multimedia in the menu at the vehicle via the controller.

Fig 1: Screen Display - CD/Multimedia Menu

G09841456

Courtesy of BMW OF NORTH AMERICA, INC.

Then select External Devices .

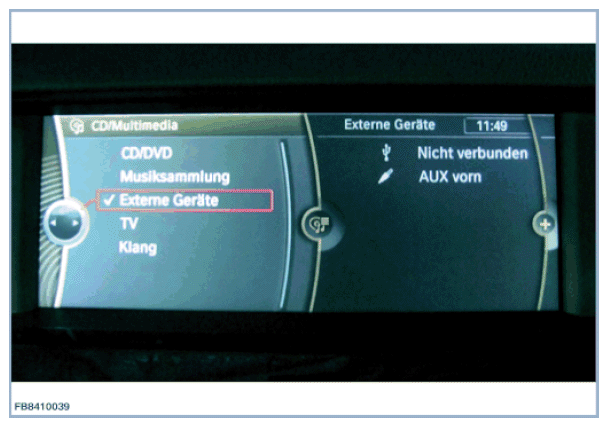

Fig 2: Screen Display - External Devices

G11039192

Courtesy of BMW OF NORTH AMERICA, INC.

Then follow the instructions in the testing procedure. The test takes approx. 2 minutes and cannot be interrupted.

If connection to the vehicle was successful, the following illustration is displayed during the media test. The IMIB is displayed on the display of the vehicle as a connected device under the name {IMIB SOUND} .

Fig 3: Screen Display - USB IMIB Sound Menu

G09841461

Courtesy of BMW OF NORTH AMERICA, INC.

{IMIB SOUND} must be selected using the controller in order to display and play the music files. Check volume control in the vehicle. A total of 3 media files and a sub-directory {SUBDIR} with a media file as content are offered. To find the subdirectory, select {IMIB SOUND} and then select Browse directories. Depending on the vehicle equipment, album cover information is displayed in the form of a illustration as well as the media descriptions (genre, album and track).

Fig 4: Screen Display - IMIB Sound (Browse Directories)

G09841462

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Screen Display - IMIB Sound Sub-Directory

G09841463

Courtesy of BMW OF NORTH AMERICA, INC.

The media test takes about 2 minutes to complete. Progress of the test is shown in the testing procedure. It must also be possible to play the music files in the vehicle within those 2 minutes. Pay attention to the volume setting in the vehicle when doing this!

NOTE: On completion of the test, data exchange between vehicle and IMIB is terminated automatically. The IMIB is no longer shown on the display of the vehicle as {IMIB SOUND} .

The load test is carried out after the media test. Follow the instructions in the testing procedure.
