00 00... Information/warning labels

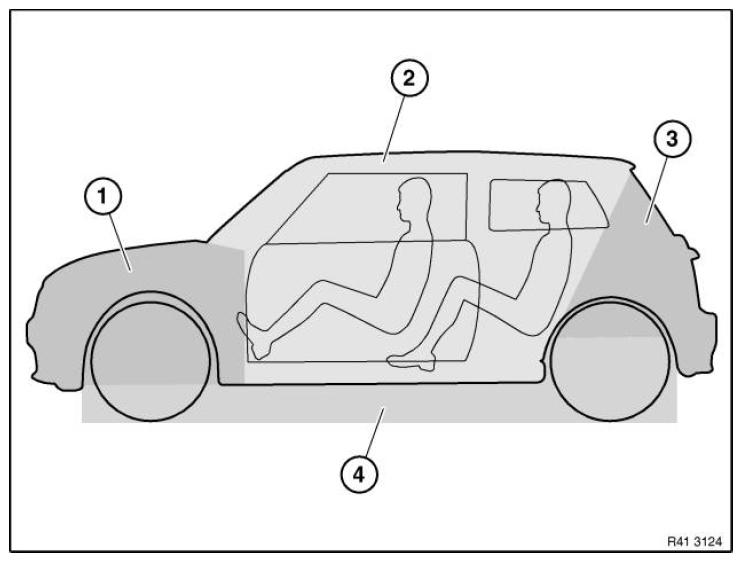

Fig 1: Identifying Information/Warning Labels On Vehicle

G11021997

Courtesy of BMW OF NORTH AMERICA, INC.

Location: Information/warning label: Country:

Engine compartment (1):
Radiator bracket, top	Refrigerant	All with S530A/S534A
Radiator bracket, top	Radiator fan	All
Support carrier, outer	Laser - production date	Great Britain, Australia only
Support carrier, outer	Laser - exterior paint	US, CDN, Japan, Australia, Gulf States only
Ignition coil cover	Ignition coil	All
Second bulkhead	Laser - brake fluid	CDN only
Servo reservoir cap	Hydraulic steering fluid reservoir	All
Support carrier, outer	Exhaust gas	US, CDN only
Cylinder head	"MINI Recommends Castrol"	Diesel RB11 & RB12 only
Tension strut with hydro-mount	Do not lash down	Nat. var. China/CKD

Interior (2):
Windscreen	Vehicle identification number	All
Windscreen, inner	Airbag	All
Instrument panel	Airbag	US, CDN
Side trim panel, rear	Lock, through-loading	All
Fuse box, inner	Fuse assignment	All
Trim, cowl panel	Soft top, warnings	All

Complete vehicle, bodyshell:
B-pillar, inner left	Manufacturer's certificate	US, CDN, Gulf States
B-pillar, inner left	Tire inflation pressure	EU, Australia, CDN
B-pillar, inner left	Runflat indicator	All
B-pillar, inner right	Front passenger airbag	All except US
B-pillar, inner right	Barcode laser - EC type plate with model designation, vehicle identification number, color code	Not US, CDN, Japan, Australia, Gulf States
Fuel filler flap	Fuel	All
Tank cap	Diesel fuel	Diesel only

Rear end (3):
Trim panel, luggage compartment floor	Pictogram, spare wheel raising	With S300A only
Flap, side trim panel, rear	First aid kit	With S428A only
Rear lid, outer	Barcode	Great Britain, US, CDN
Rear lid, left	Breakdown assistance, accident hotline	Germany only
Rear Lid	Load	R52 only

Underfloor (4):
Steering spindle	Airbag (basic setting)	Germany only

Key:

EU = European Union

CDN = Canada

US = United States
