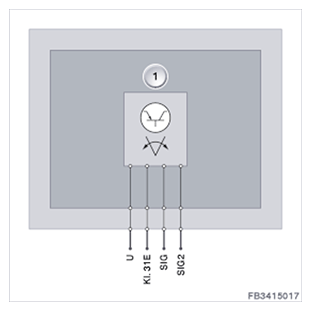

Structure and inner electrical connection
The brake pedal travel sensor is connected to the DSC control unit by a 6-pin plug connection.
The brake pedal travel sensor is supplied with voltage and GND by the DSC control unit.
| Item | Explanation |
|---|---|
| 1 | Brake pedal travel sensor |
PIN ASSIGNMENT SPECIFICATION
| Pin | Explanation |
|---|---|
| Terminal 31 E | Terminal 31, electronics earth (ground) |
| SIG | Signal line to DSC control unit |
| SIG2 | Signal line 2 to DSC control unit |
| U | Supply voltage |
