Remove and install/replace KAFAS camera (Cooper Convertible)

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

NOTE: Detents of two-part mirror base cover (1) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip cable in marked area.

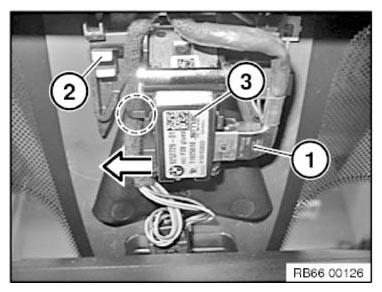

Unlock retaining claps (2) and remove camera (3) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

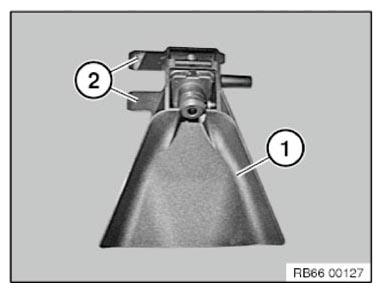

Guides (2) on camera (1) must be correctly inserted in counter supports on windshield!

Make sure camera (1) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing windshield:

Carry out the service function:

NOTE: The calibration process of the KAFAS camera is not complete until the vehicle drives in traffic.

Tell the customer that some assistance systems are temporarily unavailable after vehicle pick-up.

NOTE: Heating of the KAFAS camera is integrated in the windshield.

If the heating is defective, the windshield must be replaced!
