61 13... Base of tab connector housings

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

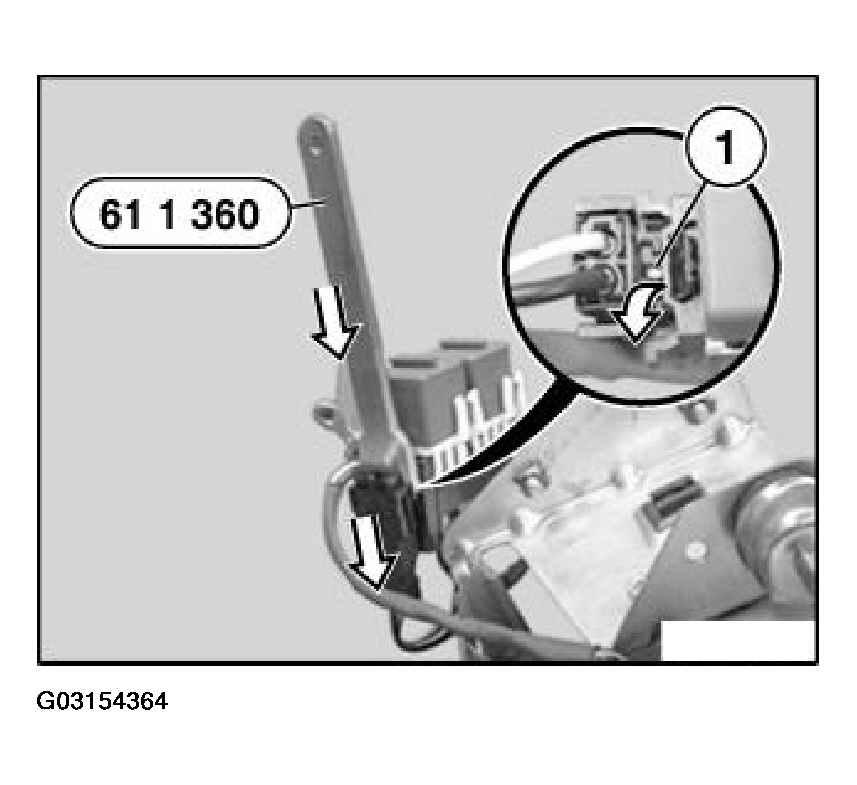

Fig 1: Unlocking Hook With Special Tool 61 1 360 And Sliding Plug Housing Downwards Out Of Base
G03154364Courtesy of BMW OF NORTH AMERICA, INC.
