32 32 001 Replacing complete steering lock

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After assembly, check all functions of ignition starter switch, indicator lamps, wipers etc.

Remove upper steering spindle bearing. Refer to 32 31 151 REPLACING UPPER STEERING SPINDLE BEARING .

Remove ring antenna.

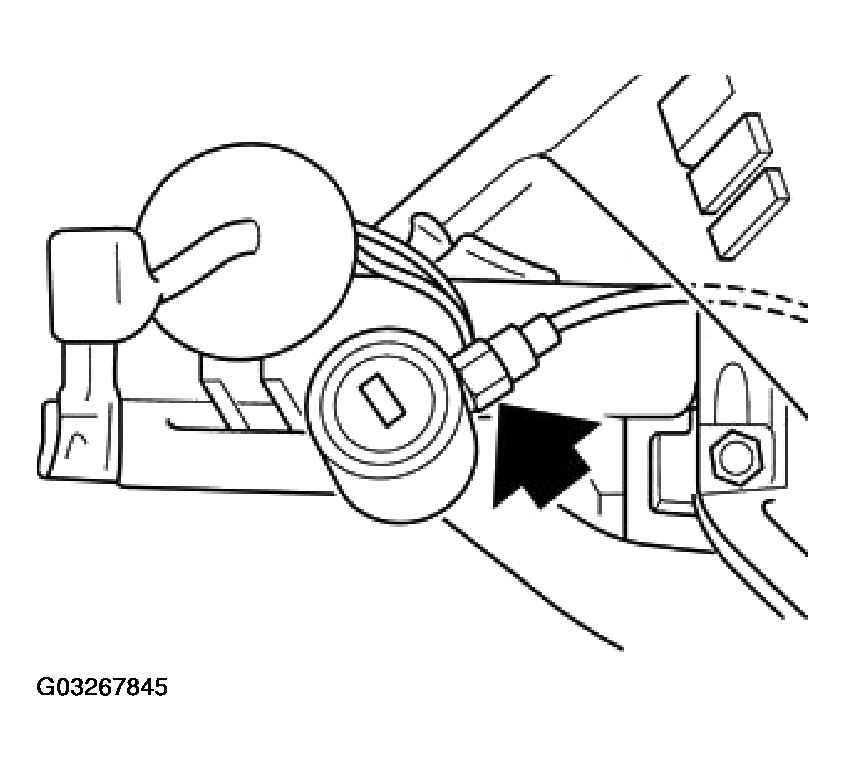

Fig 1: Removing Cable For Interlock

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove cable for Interlock. Refer to 32 32 170 REMOVING AND INSTALLING/REPLACING INTERLOCK CABLE .

Unfasten screw and lift off bracket for wiring harness.

Unlock connector from ignition starter switch and remove.

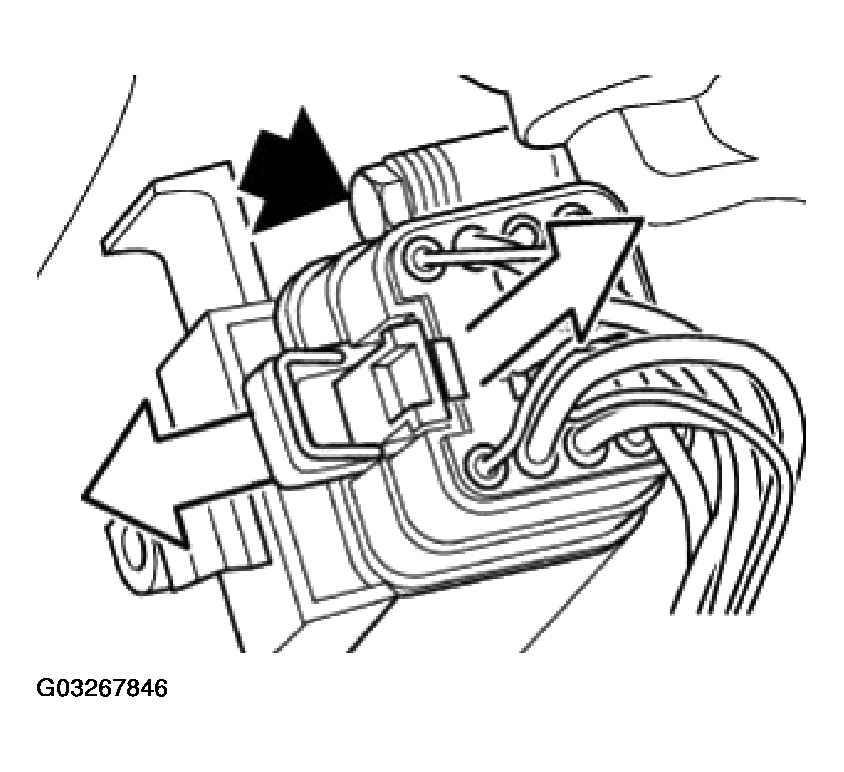

Fig 2: Removing Connector From Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten shear-off screw with tool, e.g. chisel.

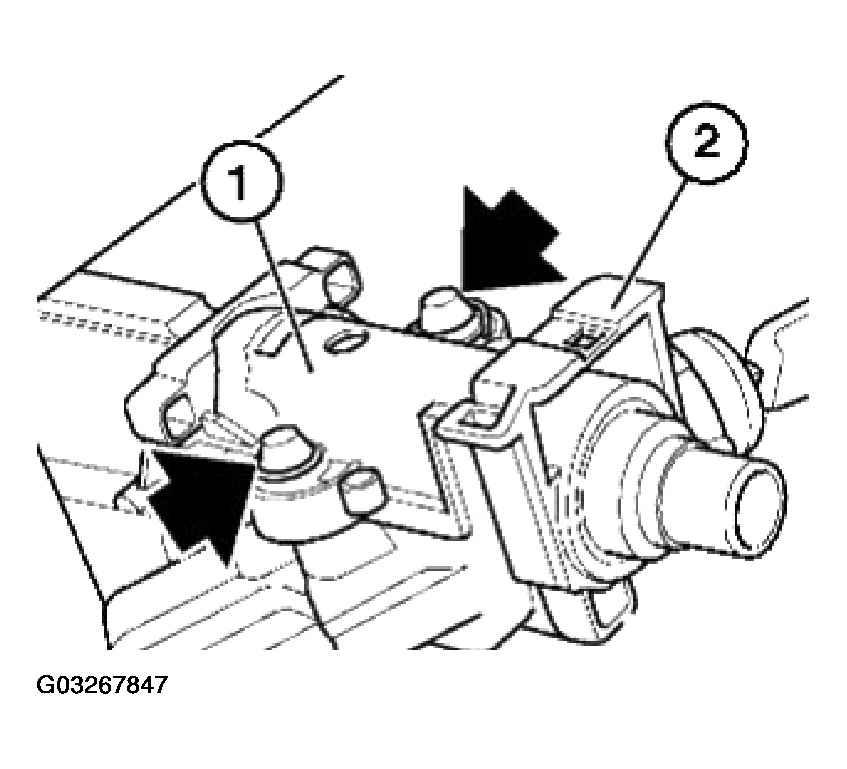

Fig 3: Removing Plate And Steering Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plate (1) and steering lock (2).

Installation:

Tighten new shear-off screws to shearing point.

Remove lock cylinder and install in new steering lock. Refer to 32 32 050 REMOVING AND INSTALLING OR REPLACING STEERING-LOCK CYLINDER .

Remove retaining paint, unscrew and remove grub screws and fit ignition starter switch to new steering lock.

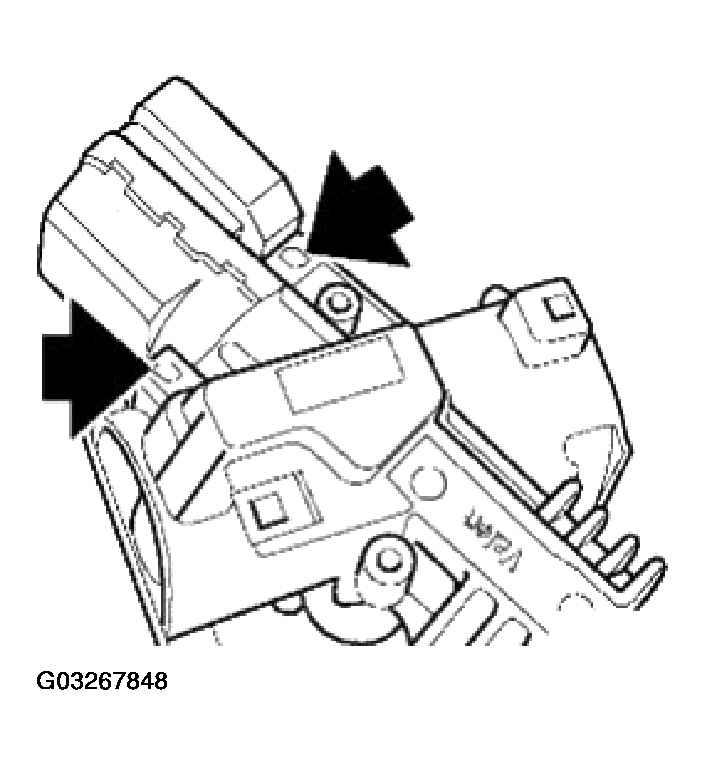

Fig 4: Fitting Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure headless screws with varnish.
