65 12 240 Removing And Installing Digital Radio (IBOS) (Us Version Only)

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Follow instructions for handling optical fibers. See61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect negative battery cable. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove luggage compartment trim on left side panel. See BODY EQUIPMENT - REPAIR INSTRUCTIONS -- ALPINA .

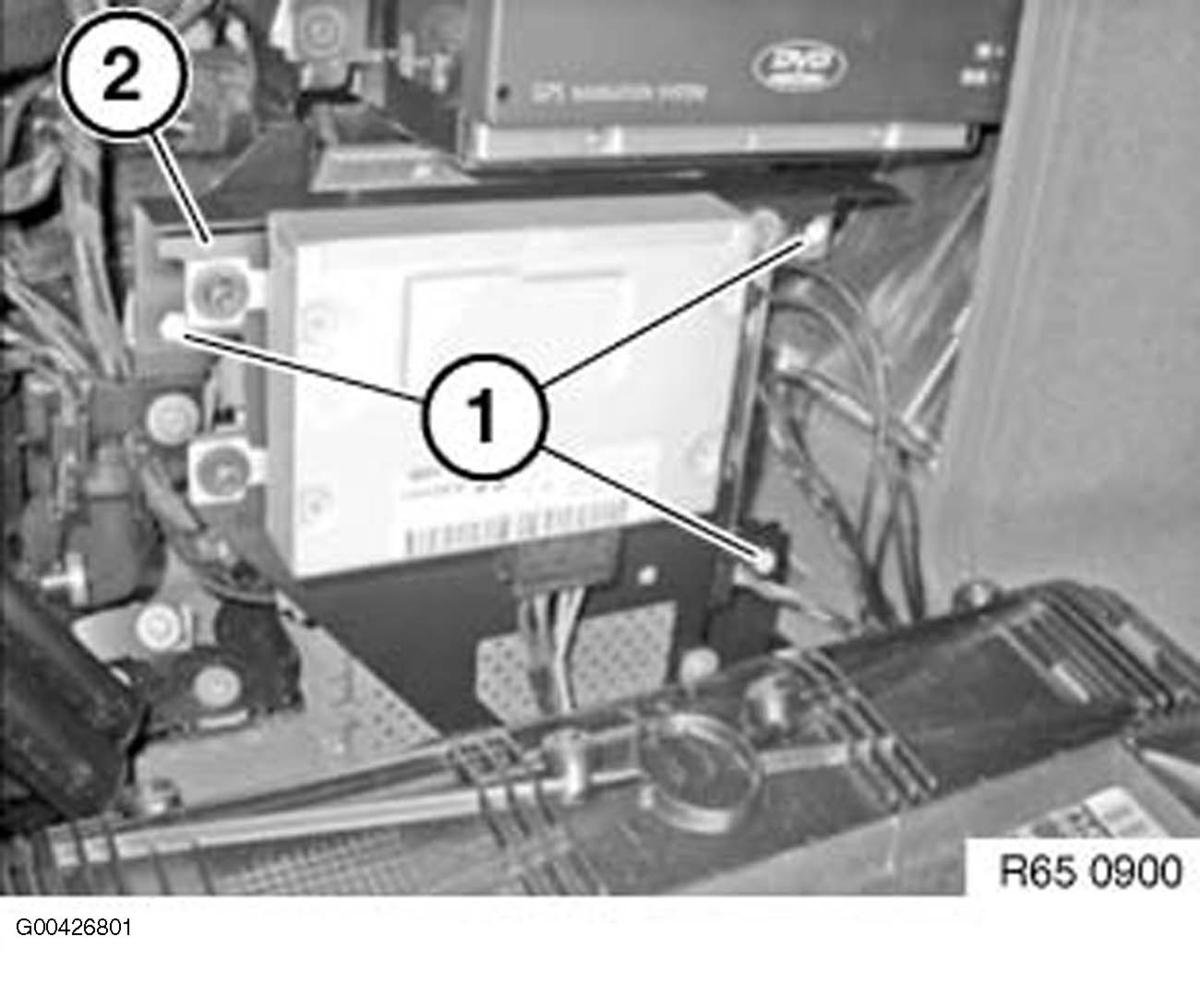

Release screws (1) and remove holder (2).

Fig 1: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

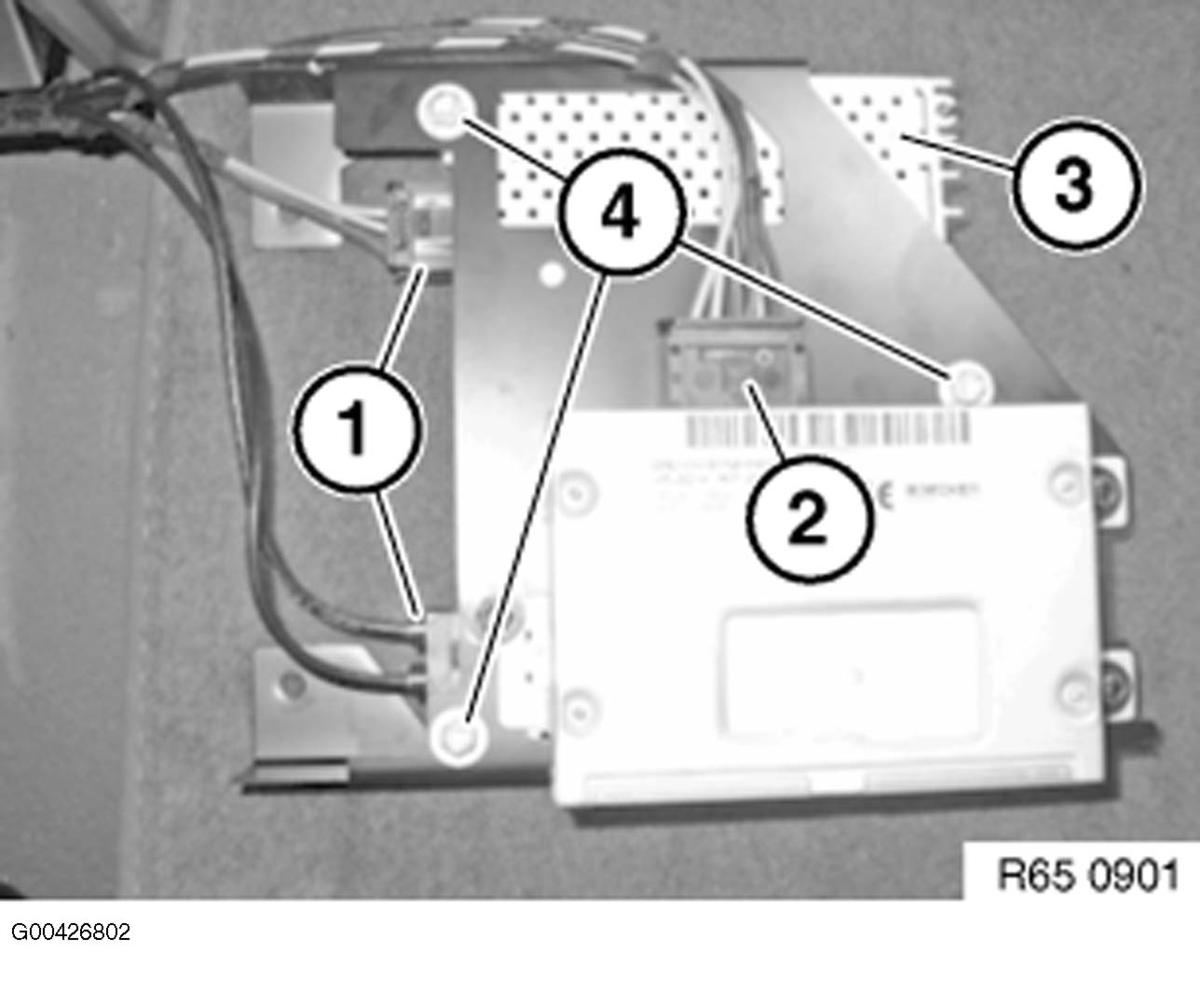

Disconnect plug connections (1, 2) and remove IBOS tuner (3) complete with bracket.

Replacement:

Release screws (4) and remove IBOS tuner from bracket.

Fig 2: Identifying DAB Tuner

Courtesy of BMW OF NORTH AMERICA, INC.
