Resetting TPM With iDrive

  1. Set the tire pressure of all wheels to specification.
  2. Turn ignition switch ON.
  3. Press controller to call up "i" menu. See Fig 1.
  4. Select SETTINGS and press controller.
  5. Select CAR/TIRES and press controller.
  6. If necessary, switch to top field and select TIRES/RDC and press controller.
  7. Start engine.
  8. Select CONFIRM TIRE PRESSURE and press controller.
  9. Drive vehicle. Initialization is automatically completed during the drive, without any feedback issued.

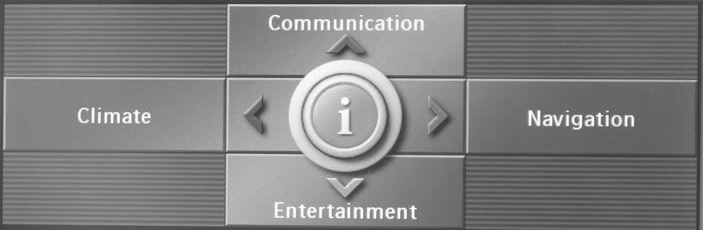

Fig 1: Locating TPMS Reset Button (With iDrive)
G00458802Courtesy of BMW OF NORTH AMERICA, INC.
