12 14 521 Replacing pulse generator on crankshaft (M54/M56)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
E46, E60, E61 only:
Remove reinforcement plate on front axle support. See 51 71 374 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .

IMPORTANT: The section removing and installing reinforcement plate on front axle support contains important installation instructions.

If fitted:
Remove vacuum reservoir for exhaust flap.

All models:

NOTE: Installation location of pulse generator for crankshaft is underneath starter motor.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

Unlock plug (1) and remove.

Unscrew bolt (2).

Remove pulse generator (3).

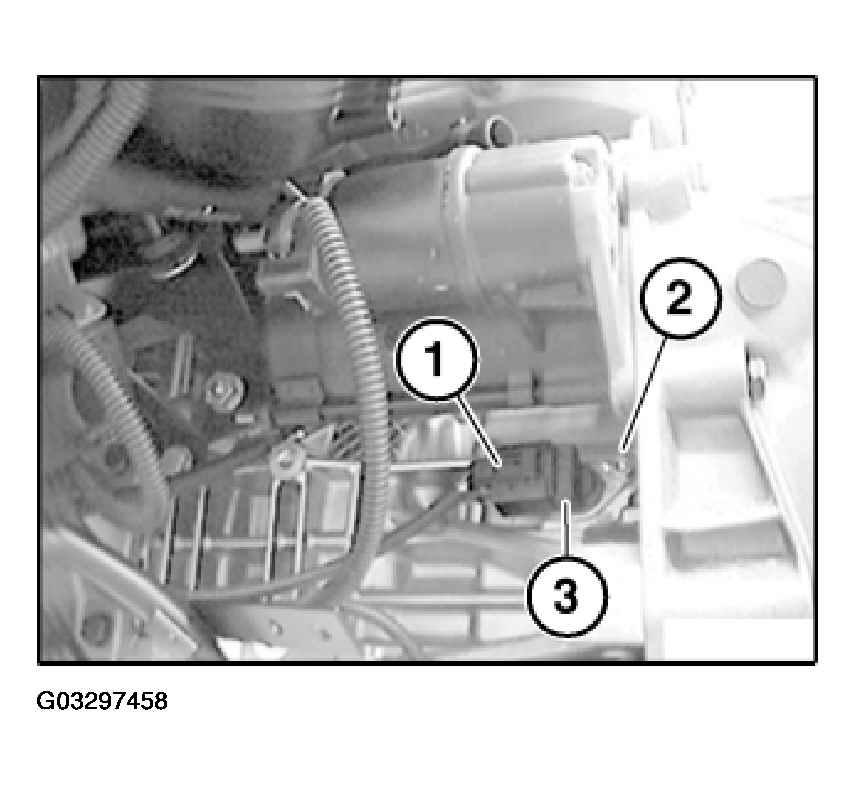

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.

Now clear the fault memory.
