61 67 010 Removing And Installing/Replacing Washer Pump Of Headlight Cleaning System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drain fluid reservoir for windshield washer system.
Remove front underbody protection. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION
Detach front left wheel arch trim in front area and fold back.
Remove bottom left cover.
Disconnect plug connection (1).
Unlock hose (2) and detach from washer pump of headlight cleaning system (3).
Turn washer pump of headlight cleaning system (3) in direction of arrow and pull up out of fluid reservoir for windshield washer system (4).

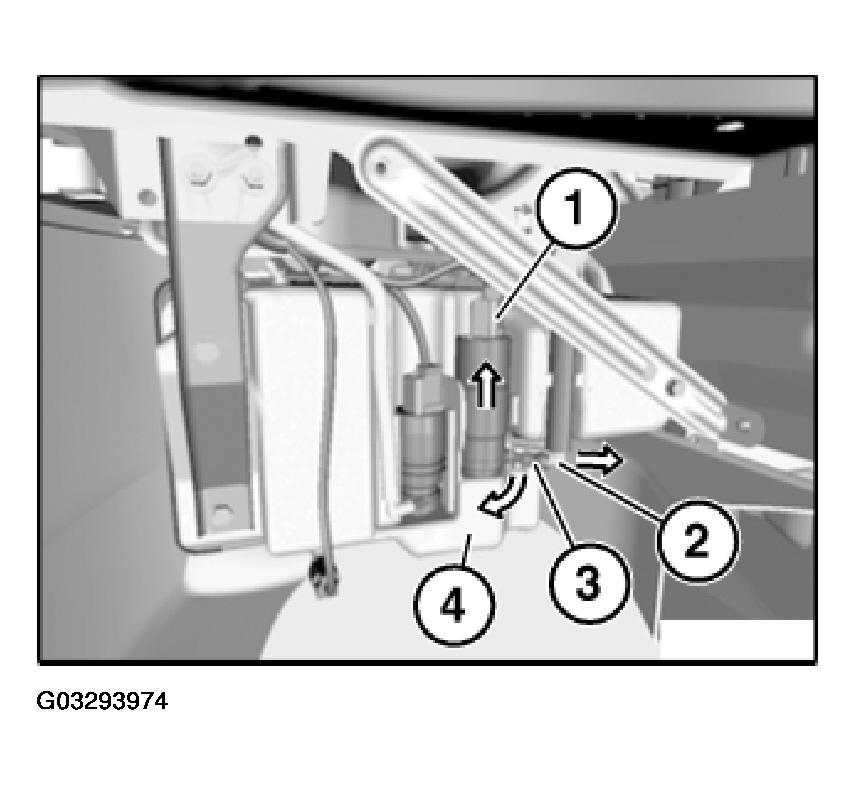

Fig 1: Plug Connection, Hose, Headlight Cleaning System Washer Pump And Windshield Washer System Fluid Reservoir
Installation:
Replace strainer for washer pump of headlight cleaning system.
If necessary, coat sealing ring of washer pump for headlight cleaning system with antiseize agent.
Ensure hose is laid without kinks.
