61 31 287 Removing and installing/replacing driving dynamics switch
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63)
.
- 64 1 020
Necessary preliminary tasks:
- Remove finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR PRESELECTOR LEVER (GEARSHIFT LEVER) .
NOTE:

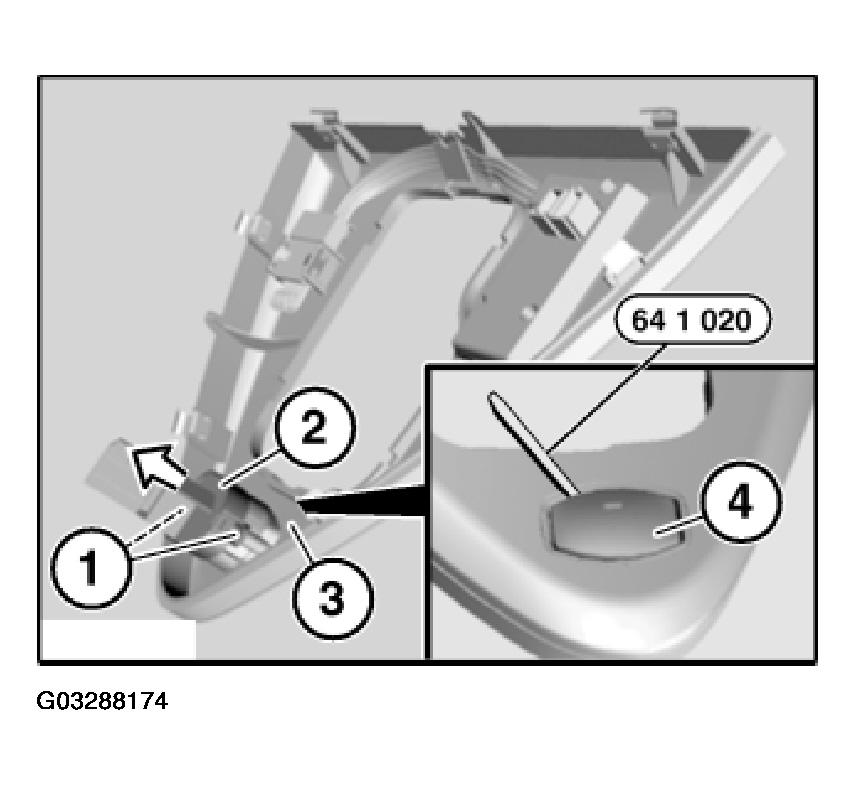

The illustrations show the removal of the driving dynamics switch in versions with automatic transmissions.
Release screws (1).
If necessary, lever out actuation trim (4) with special tool 64 1 020 and remove.
Remove driving dynamics switch (2) in direction of arrow from finisher for preselector lever (3).
