32 11... Replacing gaiter for electric steering gear (EPS) on left or right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Spindle side:
IMPORTANT:
The steering gear must be replaced If the corrosion on the spindle running surface has advanced to such an extent that the steering is acoustically conspicuous under load!
Adhere to the utmost cleanliness.
Do not regrease the spindle running surface. Sufficient special grease was used during assembly for lifetime filling.
Adhere to the utmost cleanliness.
Do not regrease the spindle running surface. Sufficient special grease was used during assembly for lifetime filling.
Rack side:
IMPORTANT:
The steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!
Clean rack and check surface for damage (e.g. by corrosion).
Grease rack (refer to STEERING AND WHEEL ALIGNMENT - OPERATING FLUIDS ).
Clean rack and check surface for damage (e.g. by corrosion).
Grease rack (refer to STEERING AND WHEEL ALIGNMENT - OPERATING FLUIDS ).
Necessary preliminary tasks:
- Remove front assembly underside protection . See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .
Clean tie rod.
Release band clamp (1).
Mark screw-in depth of tie rod (2) or count thread turns.
Unscrew bolt (3).
Twist tie rod (2) out of tie rod end (4).
Installation:
Replace microencapsulated screw.
Tightening torque, see 32 21 2AZ in 32 21 STEERING ARMS .

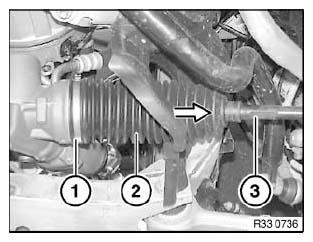

Release ear clamp (1).
Detach gaiter (2) from tie rod (3).
Installation:
Read and follow notes/information on spindle and rack sides at the start of the document.
Clean tie rod and apply grease to taper. This ensures that the gaiter is not rotated when the tie rod is rotated.
Release water drain valve (1) (20 A/F) and replace.
Installation:
Fit O-ring (2).
Tightening torque, see 32 00 3AZ in 32 00 STEERING .
After installation:
- Perform CHASSIS ALIGNMENT CHECK .
- Carry out STEERING ANGLE SENSOR ADJUSTMENT
