84 11 540 Removing and installing hands-free microphone
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Roof Switch Cluster

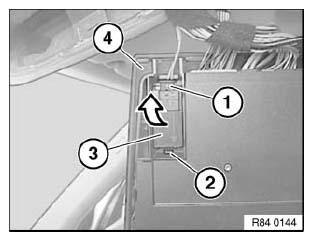

Disconnect plug connection (1).
Unlock catch (2) and feed hands-free microphone (3) in direction of arrow out of roof switch cluster (4).
Installation:
Arrow on hands-free microphone (3) must point in direction of travel.
Hands-free microphone must snap audibly into place.
