66 31 001 Adjusting Acc Sensor

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 100
36 1 130

Lever out cap (1).

Carry out adjustment of ACC sensor (2) with special tool 36 1 130 by means of adjusting screws (3).

Fig 1: Identifying ACC Sensor And Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool required:

Active Cruise Control ACC adjusting device, complete.

Order number: 81 10 0 021 292

Consisting of:

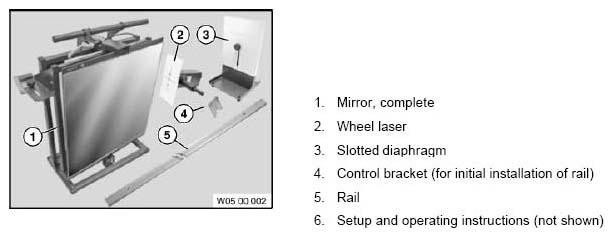

Fig 2: Identifying Mirror, Wheel Laser, Slotted Diaphragm, Control Bracket And Rail

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A holder which is not included in the scope of delivery is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100 ).

NOTE:

Follow instructions for ACC adjusting device . See 66 31 001 ADJUSTING ACC SENSOR .

NOTE: To adjust the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device.
Select ACC system in diagnosis. Start test module "ACC adjustment" (service functions) and proceed in accordance with instructions.
Handle ACC adjusting device in accordance with mounting and operating instructions provided with device.

NOTE: Further information on the ACC adjusting device can be found in the BMW Workshop Equipment and Planning Documentation.
