00 00... Greasing positive battery connection point

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ACOUSTIC COVER

Lift expanding rivets (1) out of cover (2) on right.

Remove cover (2).

Installation note:

If necessary, replace damaged expanding rivets.

Make sure holders (3) are correctly seated.

Fig 1: Identifying Expanding Rivets, Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

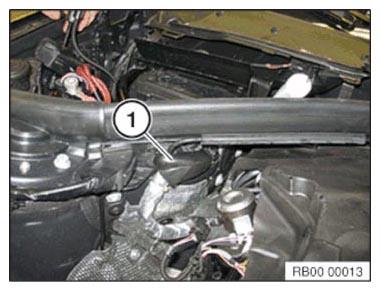

Pull out protective cap (1).

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Coat B+ terminal (1) with terminal grease.

NOTE: Use a standard flat brush with a width of approx. 2.5 cm to apply the grease.
Sourcing reference: obtainable from BMW Parts Department.
Contact-protection greaseKF1

BMW Part number: 83 19 2 295 229

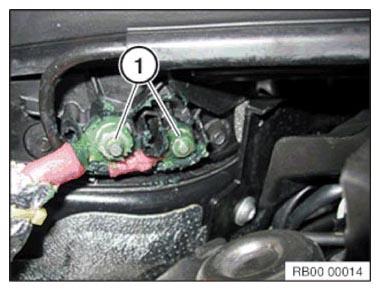

Fig 3: Coating B+ Terminal With Terminal Grease
Courtesy of BMW OF NORTH AMERICA, INC.

Coat B+ terminal (1) with terminal grease.

NOTE: Use a standard flat brush with a width of approx. 2.5 cm to apply the grease.
Sourcing reference: obtainable from BMW Parts Department.
Contact-protection greaseKF1

BMW Part number: 83 19 2 295 229

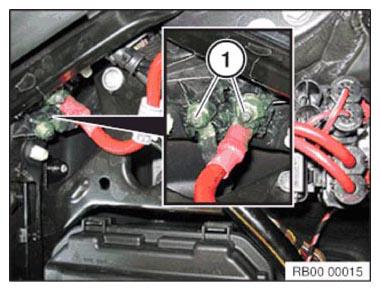

Fig 4: Coating B+ Terminal With Terminal Grease
Courtesy of BMW OF NORTH AMERICA, INC.

Take out the relay holder (1) and set to one side.

Fig 5: Identifying Relay Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out protective cap (1) in direction of arrow.

Fig 6: Pulling Out Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
