26 11... Overview (inserted propeller shaft)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 BMW 435i xDrive, 2016 BMW 435i, 2016 BMW 428i xDrive, 2016 BMW 428i, and 2015 BMW 435i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

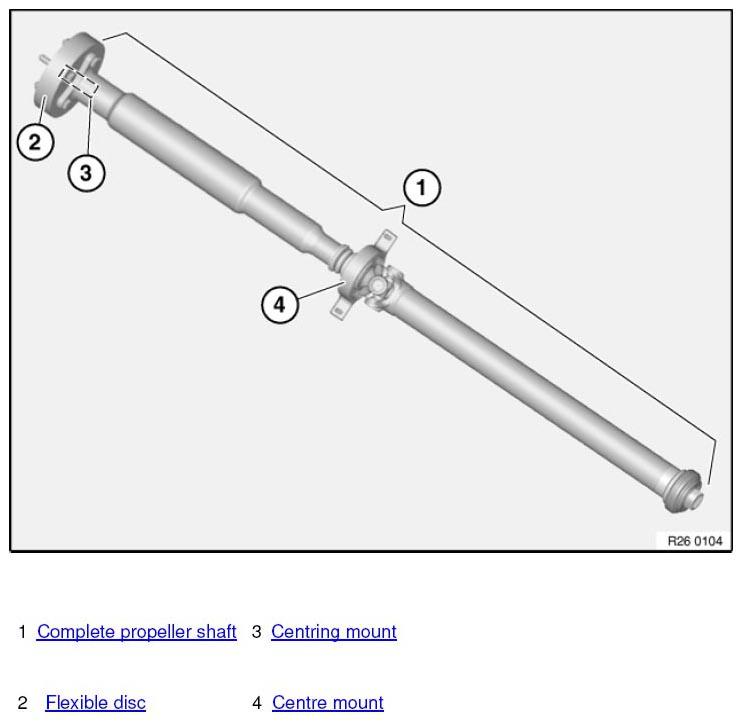

Fig 1: Overview Of Inserted Propeller Shaft
G10208157Courtesy of BMW OF NORTH AMERICA, INC.
