Changing front differential oil

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Drain front axle differential oil.

Installation note:

Replace oil drain plug.

Tightening torque 31 50 2AZ .

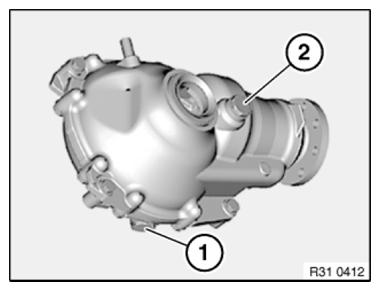

Fig 1: Identifying Oil Drain Plug And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Undo oil filler plug (2).

Pour in front axle differential oil up to lower edge of opening for oil filler plug (2).

Installation note:

Replace oil filler plug.

Tightening torque 31 50 2AZ .
