12 72 010 Removing And Installing/Replacing Throttle Actuator (S54)

Turn off ignition.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S54) .

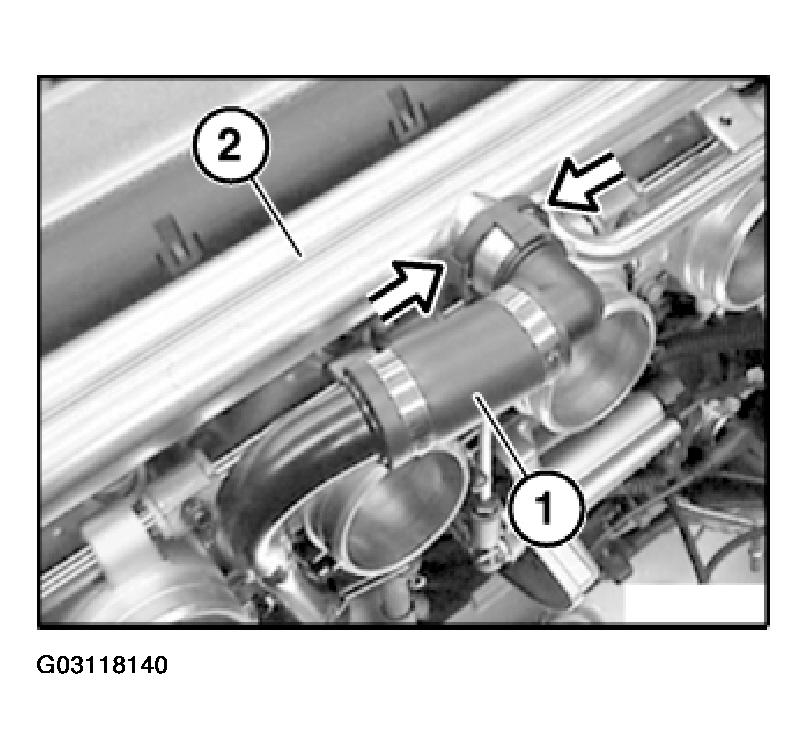

Press lock together and detach air hose (1) from air pipe (2).

Fig 1: Pressing Lock Together And Detaching Air Hose From Air Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

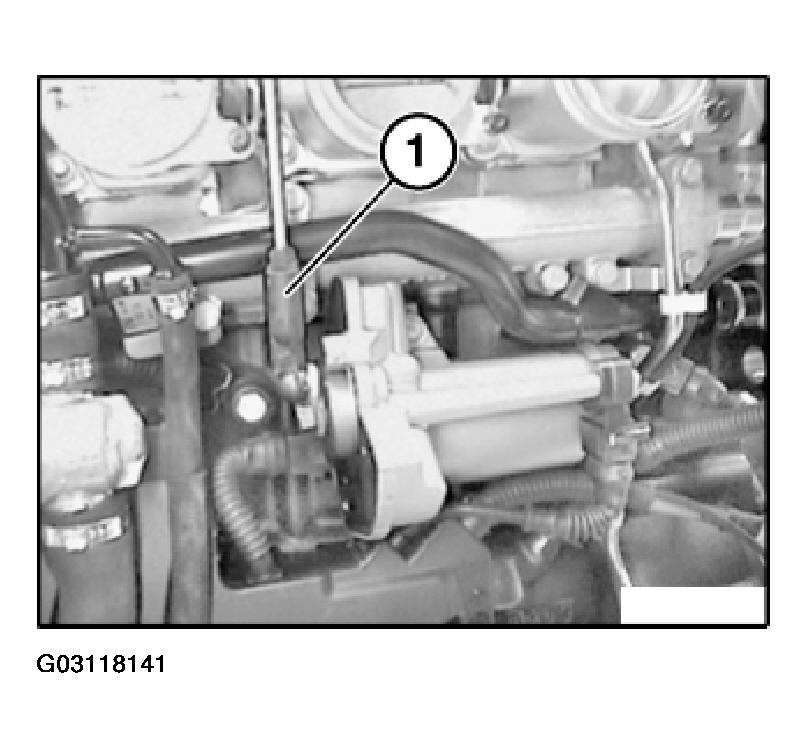

Unhook pull rod (1) from ball head on servomotor side.

Fig 2: Unhooking Pull Rod From Ball Head On Servomotor Side

Courtesy of BMW OF NORTH AMERICA, INC.

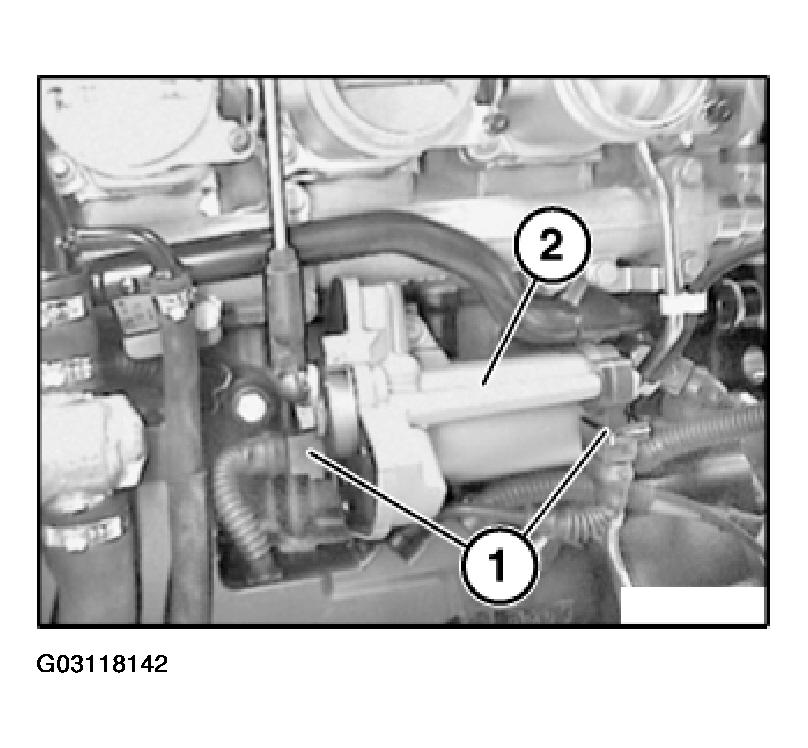

Unlock plug (1) and detach from throttle actuator (2).

Fig 3: Unlocking Plug And Detaching From Throttle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

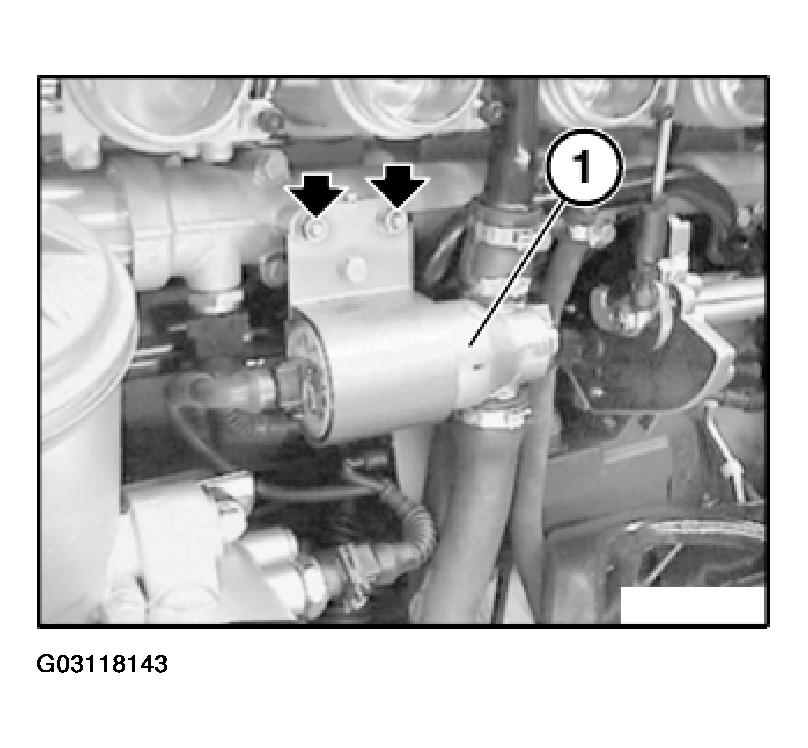

Release nuts and lay idle-speed control valve (1) to one side to gain access to screw connection of cable duct.

Fig 4: Removing Idle-Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

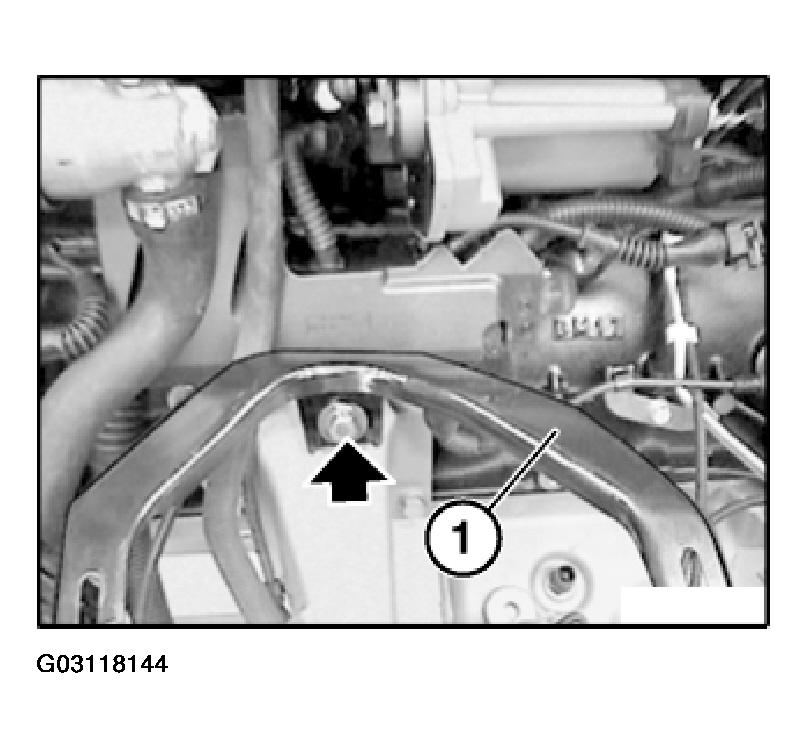

Release screw and remove manifold support (1).

Installation:

In order to avoid torsion stress on manifold, secure manifold support with screw but do not tighten down screw. Only tighten down screw when manifold is mounted on throttle assembly.

Fig 5: Removing Manifold Support

Courtesy of BMW OF NORTH AMERICA, INC.

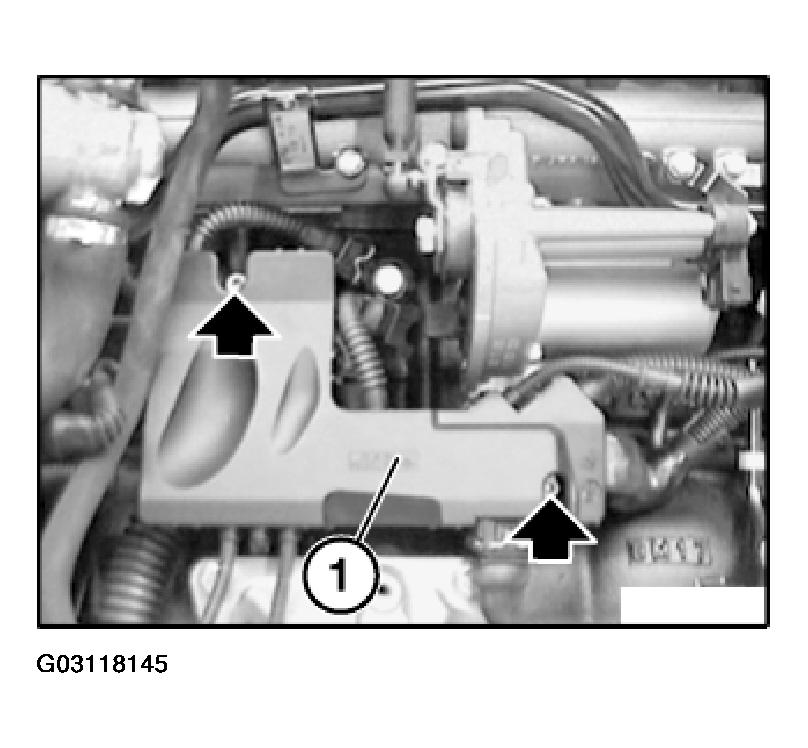

Release screws.

Lay cable duct (1) to one side.

Fig 6: Removing Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

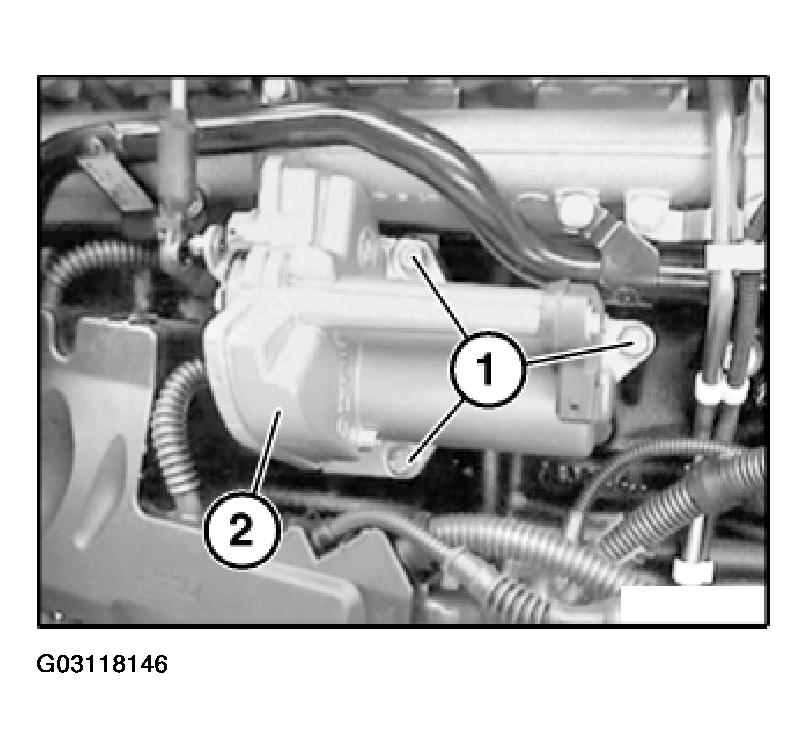

Release screws (1).

Remove throttle actuator (2).

Installation:

Adjust full-load stop after installing throttle actuator. Adjusting the full-load stop is described in 13 54 010 ADJUSTING BASIC THROTTLE SETTING (S54) .

Fig 7: Removing Throttle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

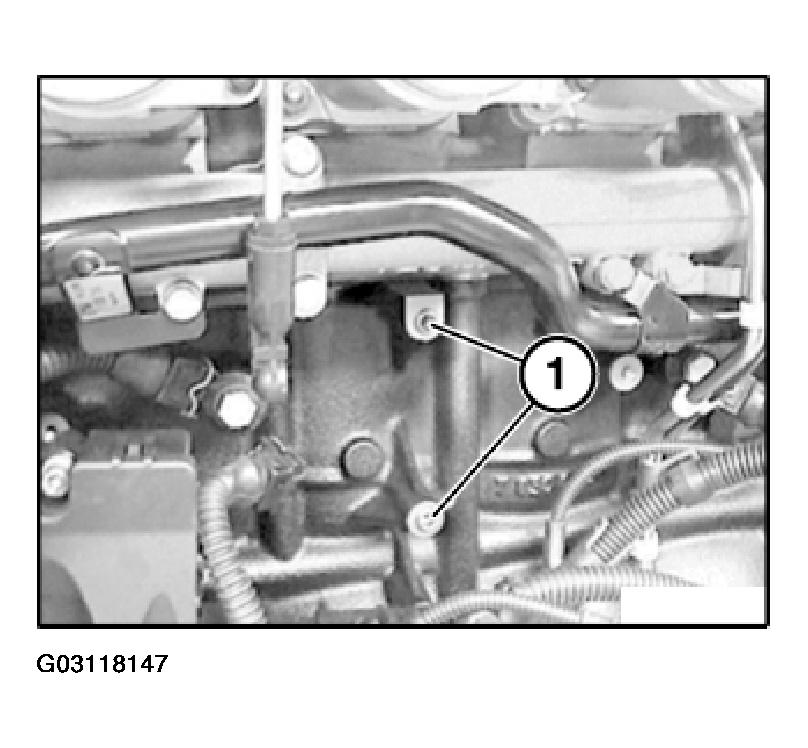

Check adapter sleeves (1) for damage and correct installation position.

Fig 8: Identifying Adapter Sleeves For Checking

Courtesy of BMW OF NORTH AMERICA, INC.

• Service functions.
• DME system checks.
• Function test.
