61 31 313 Replacing a brake lining sensor
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove wheel. See WHEELS

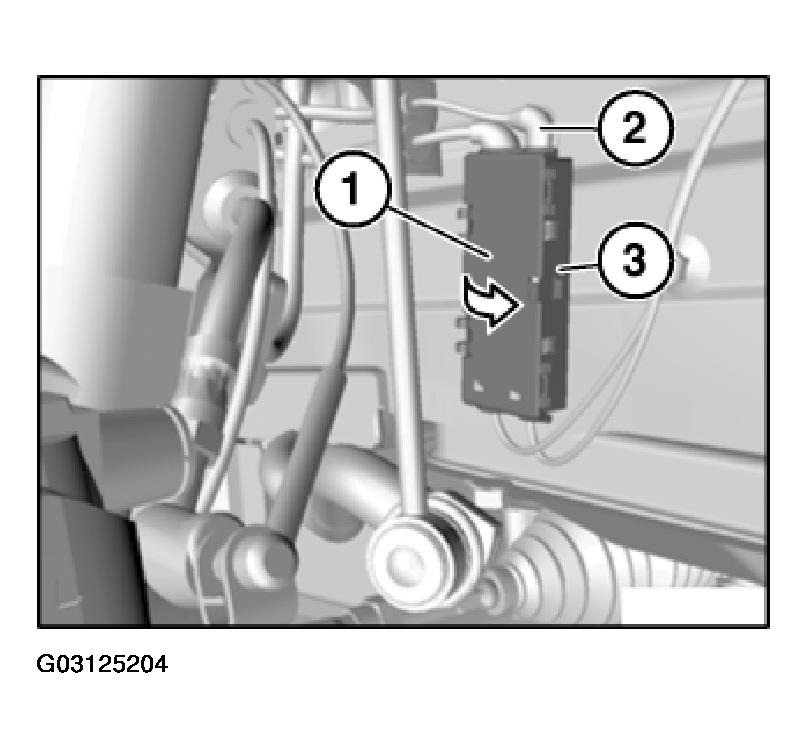

Open plug housing (1).
Unclip lead of brake lining sensor (2) from plug housing (1).
Disconnect associated plug connection of lead from brake lining sensor (2).
Feed lead from brake lining sensor (2) out of fixtures.

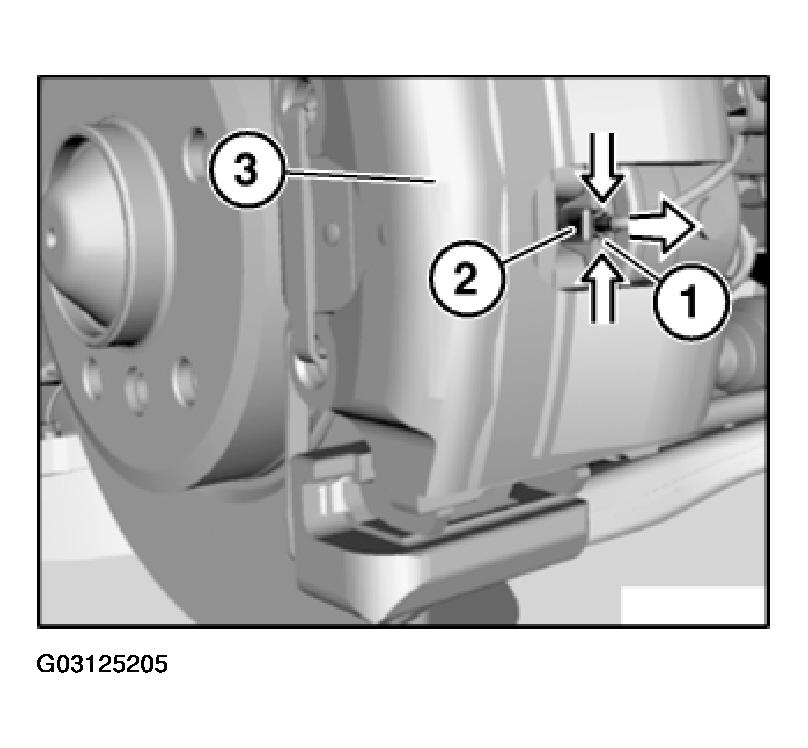

Press clip (1) together and detach brake lining sensor (2) in direction of arrow from brake caliper (3).
Installation:
Make sure clip (1) and brake lining sensor (2) are correctly seated in brake caliper (3).
