Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

M3:

Unclip trim for storage tray (1) sideways and lift.

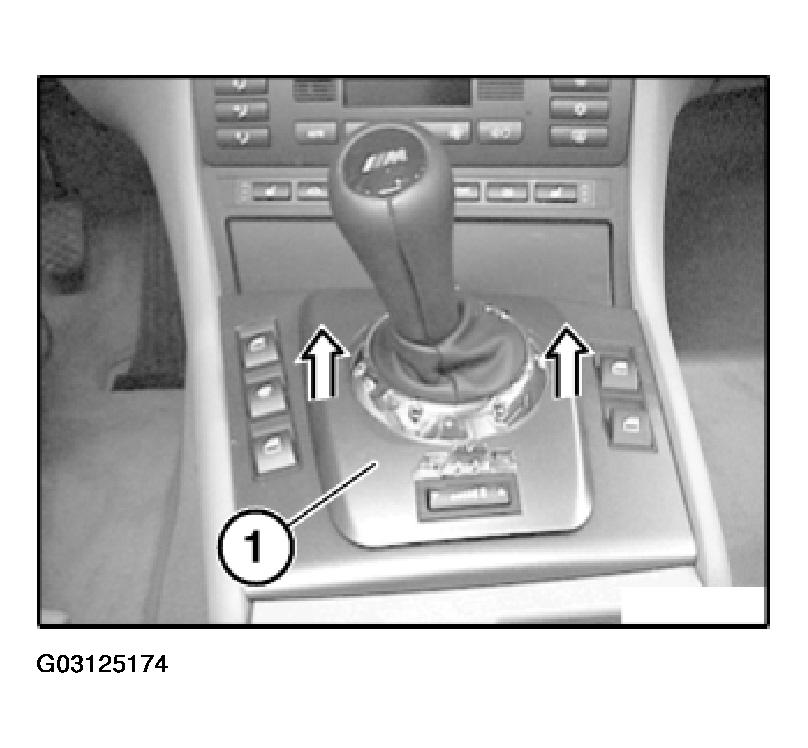

Fig 1: Unclipping Storage Tray Trim
G03125174Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip switch for SMG transmission (2) in direction of arrow from trim for storage tray (3) and remove.

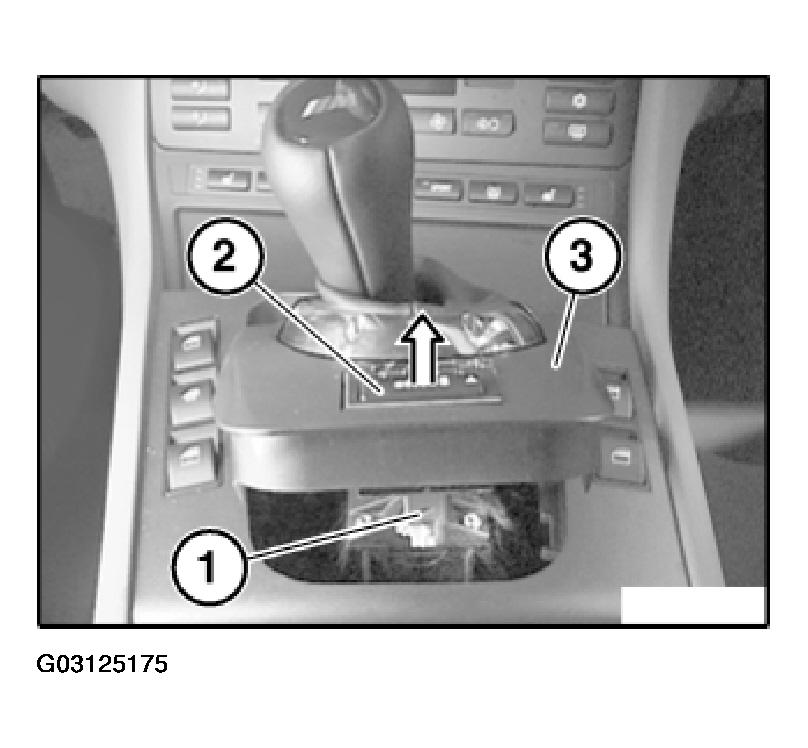

Fig 2: Identifying Direction Of Unclipping Switch For SMG Transmission From Storage Tray Trim
G03125175Courtesy of BMW OF NORTH AMERICA, INC.

All:

Unclip trim for storage tray (1) with special tool 64 1 020 and raise in direction of arrow.

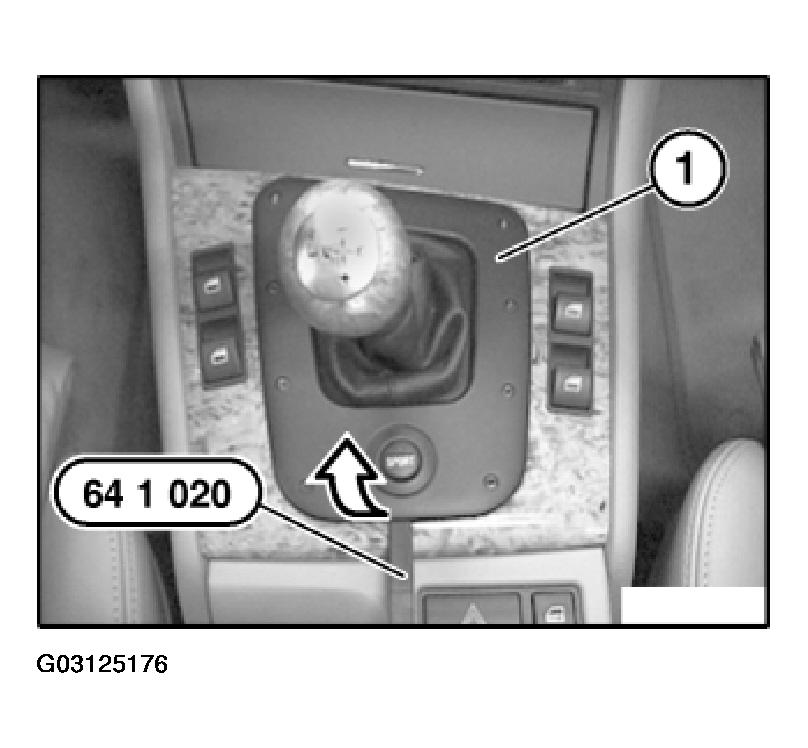

Fig 3: Unclipping Storage Tray Trim With Special Tool 64 1 020
G03125176Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip switch for SMG transmission (2) in direction of arrow from trim for storage tray (3) and remove.

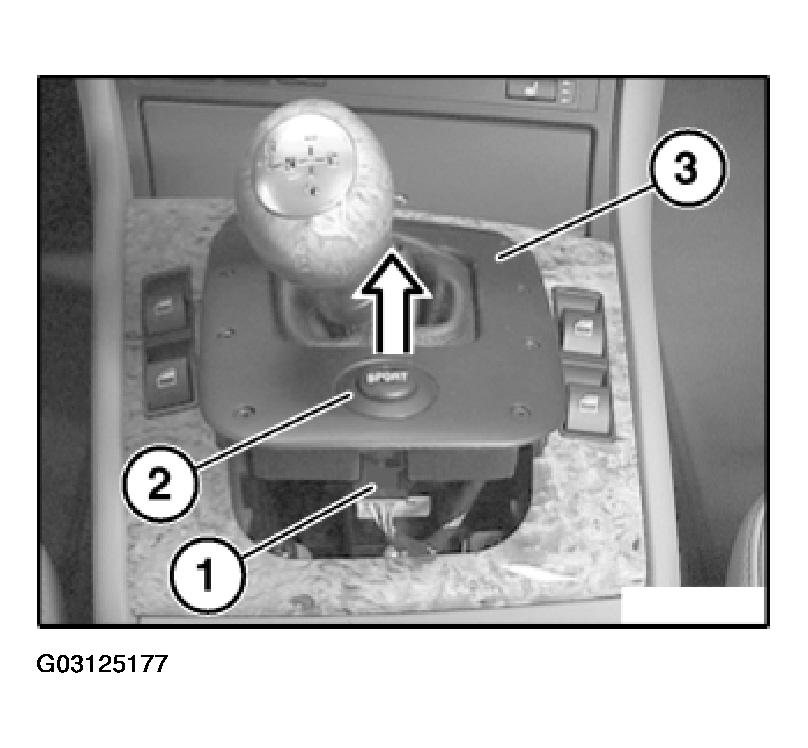

Fig 4: Identifying Direction Of Unclipping SMG Transmission Switch From Storage Tray Trim
G03125177Courtesy of BMW OF NORTH AMERICA, INC.
