61 31 036 Removing and installing/replacing operating unit for light switch unit
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Unclip left trim, refer to 51 16 221 REPLACING A CLIPPED-IN TRIM (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .
Remove left glove box, refer to 51 16 350 REMOVING AND INSTALLING LEFT GLOVE BOX .
Remove light switch unit, refer to REMOVING AND INSTALLING LIGHT SWITCH UNIT .

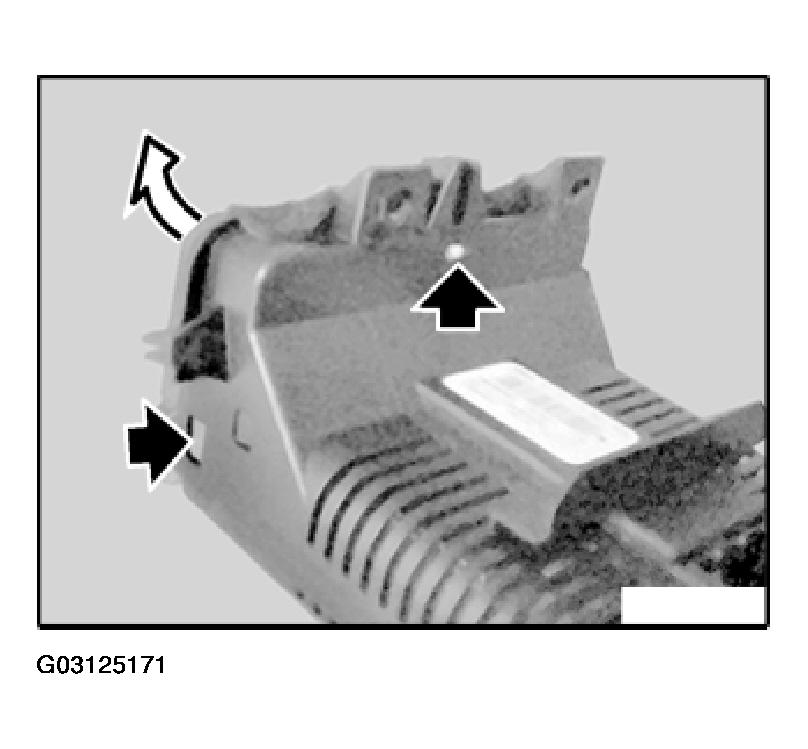

Unclip operating unit.

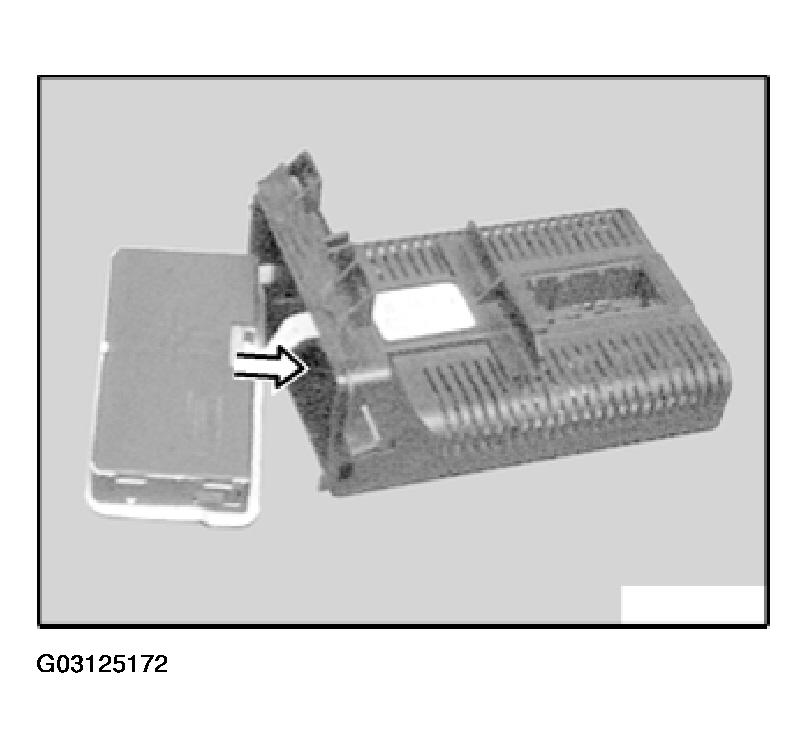

Pull off connectors.
