61 31 005 Removing and installing/replacing fixture for steering column stalk
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work. With steering wheel removed, do not under any circumstances turn/twist fixture for steering column stalk!
Necessary preliminary tasks:
- Remove steering wheel. See 32 33 STEERING WHEEL
- Remove lower section of steering column trim. See REMOVAL & INSTALLATION
- Remove top section of steering column casing. See STEERING COLUMN UPPER TRIM

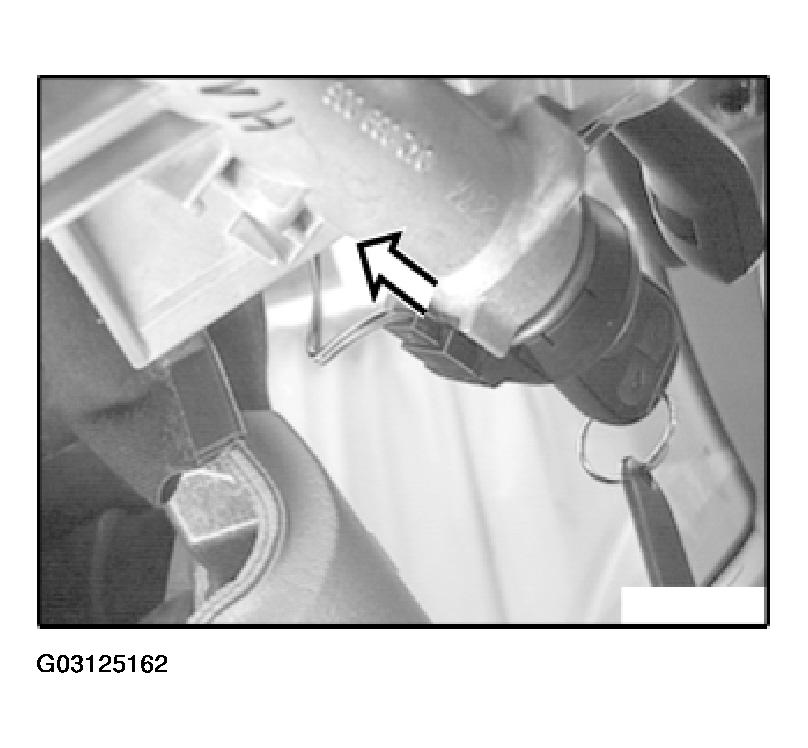

Disconnect plug from ring antenna.

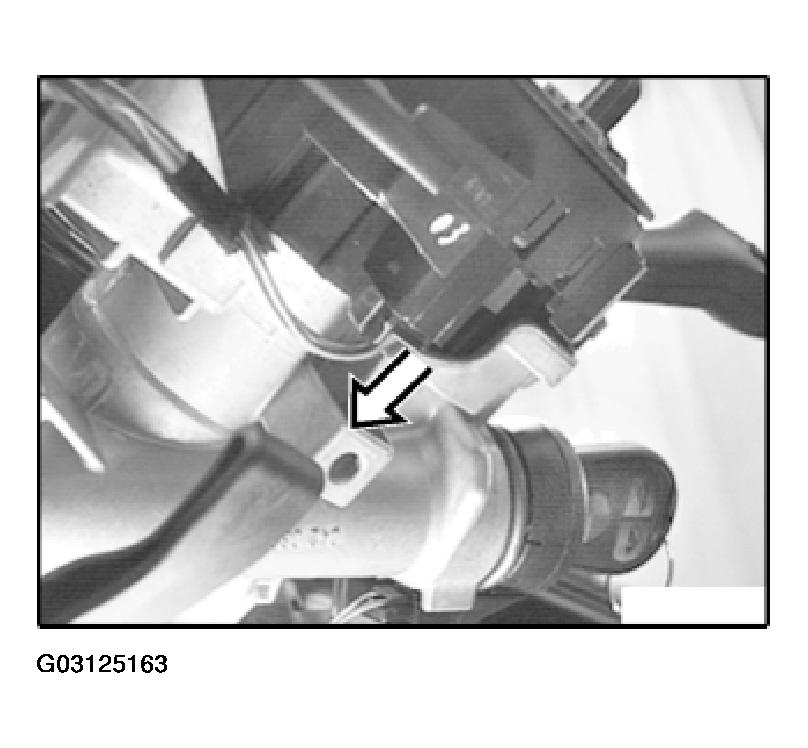

Disconnect plug from wiper switch.

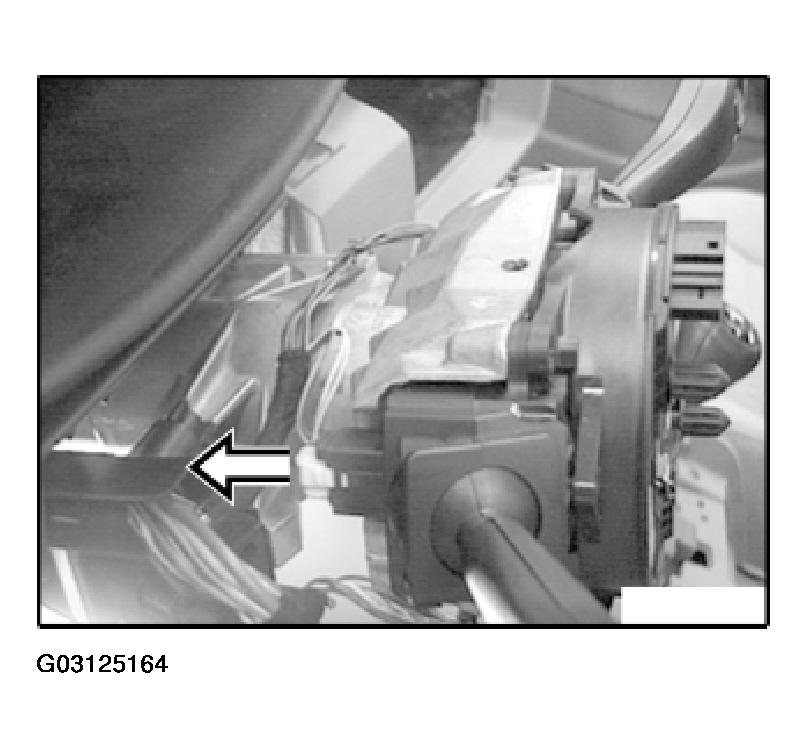

Disconnect plug from turn indicator/dipping switch.

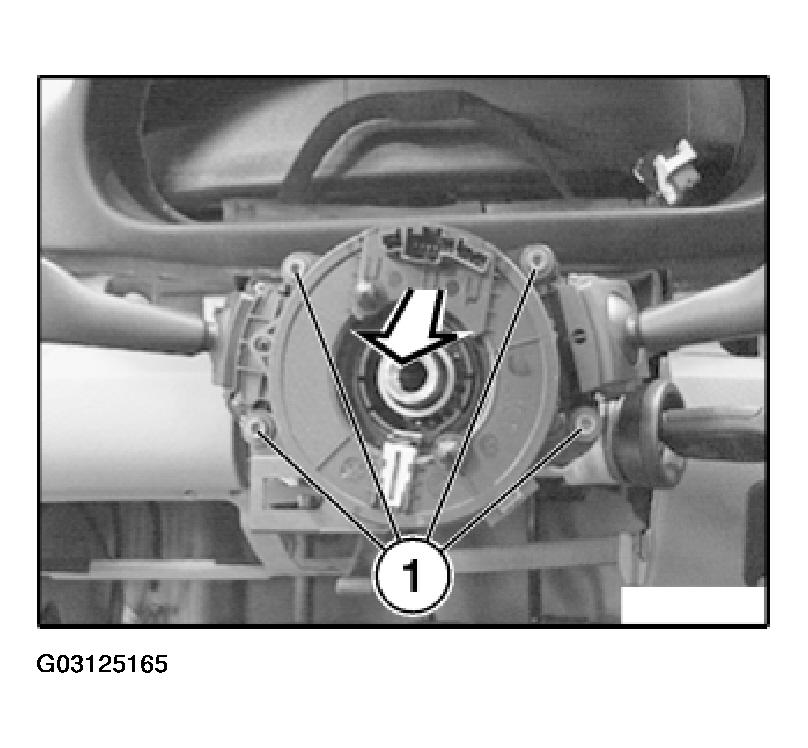

Release screws (1) and remove fixture for steering column stalk.
WARNING:

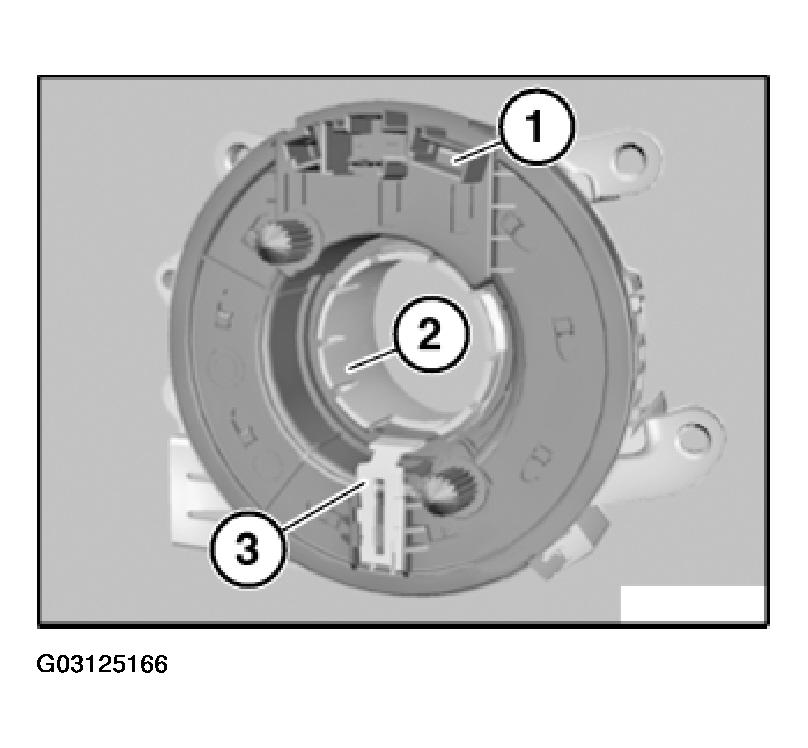

When removed, the cover (1) of the fixture for the steering column stalk (2) is secured against turning/twisting by the lock (3).
Do not under any circumstances twist the cover (1) out of its centered position against the fixture for the steering column stalk (2).
Do not under any circumstances twist the cover (1) out of its centered position against the fixture for the steering column stalk (2).
