61 36 540 Replacing Relay For Air Supply Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Extreme cleanliness must be ensured in area of air line connections during removal and installation. Even the smallest of dirt particles can cause leakage in the system.
Necessary Preliminary Tasks:
- Pull fuse for control unit.
- Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Remove spare wheel. See 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL
IMPORTANT:
Do not kink, twist or crush pipes.

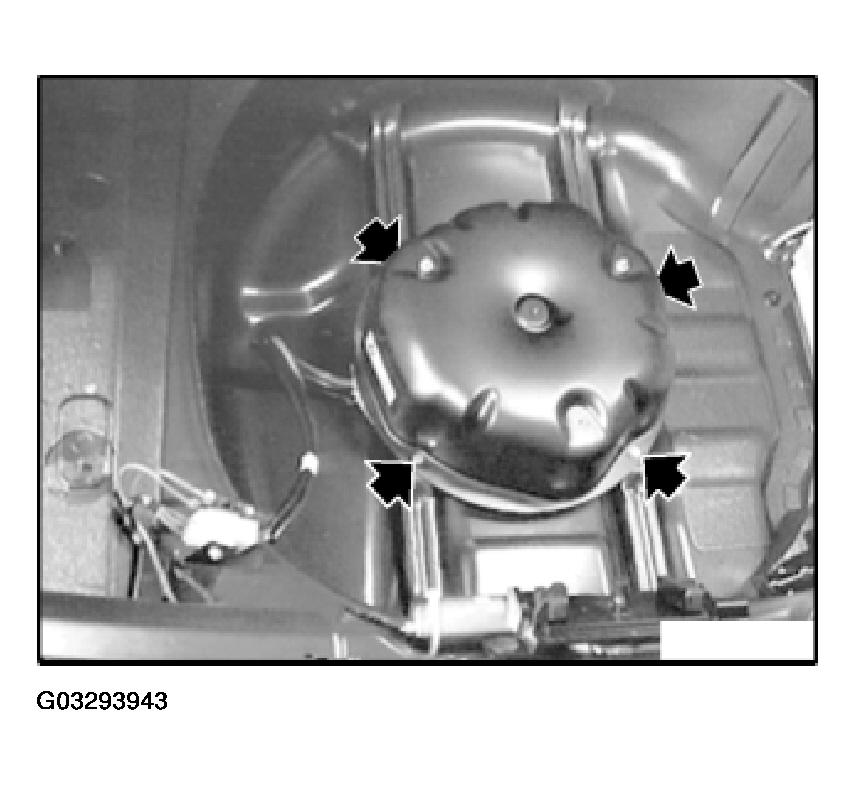

Unfasten screws.
Tightening torque, (9 N.m.).
Turn air supply system over.

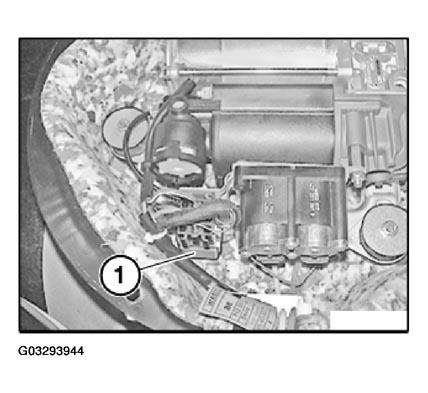

Detach relay (1).
