61 31 011 Removing And Installing/Replacing Volute Spring Cassette

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install fixture for steering column stalk. Refer to 61 31 006 REMOVING AND INSTALLING (REPLACING) FIXTURE FOR STEERING COLUMN STALK .

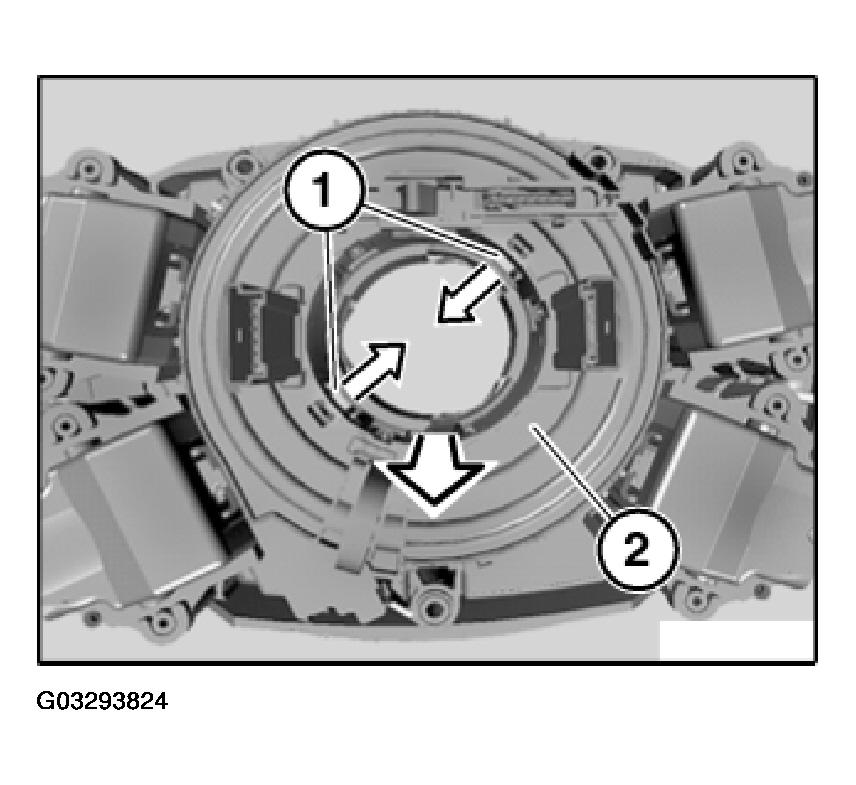

Unlock catches (1) and remove volute spring cassette (2) towards top.

Fig 1: Catches, Volute Spring Cassette And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

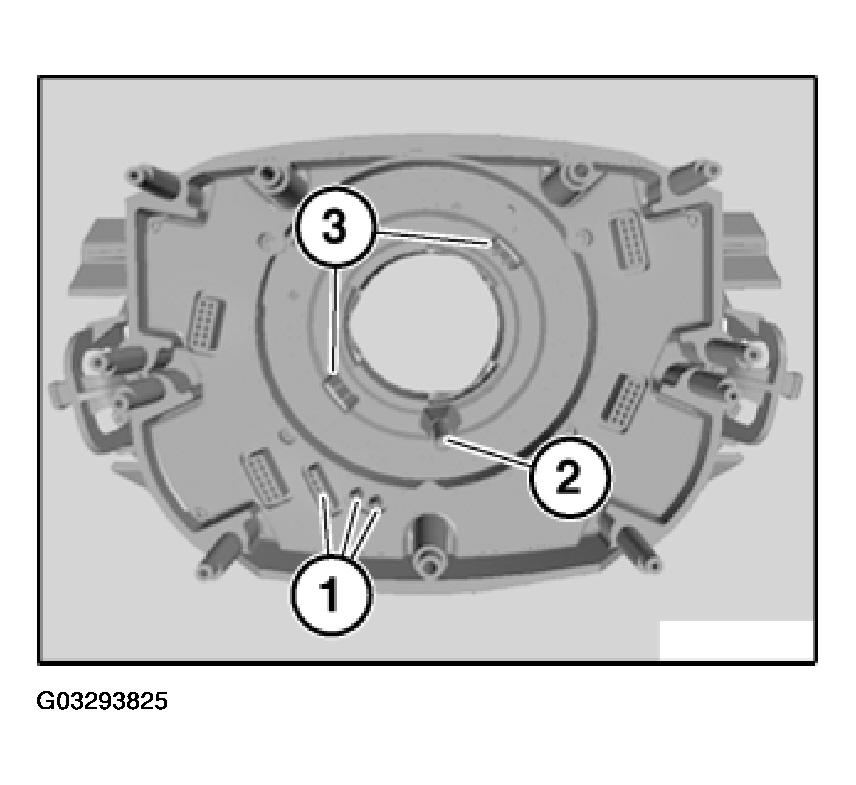

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).

Fig 2: Plug Connections, Guide And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
