32 41... Replacing level switch for Dynamic Drive fluid reservoir
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Draw off and dispose of hydraulic fluid.
Observe country-specific waste-disposal regulations.
- Detach fluid reservoir from holder, raise and if necessary remove sideways. Refer to 32 41 253 REMOVING AND INSTALLING/REPLACING FLUID RESERVOIR FOR POWER STEERING WITH DYNAMIC DRIVE .

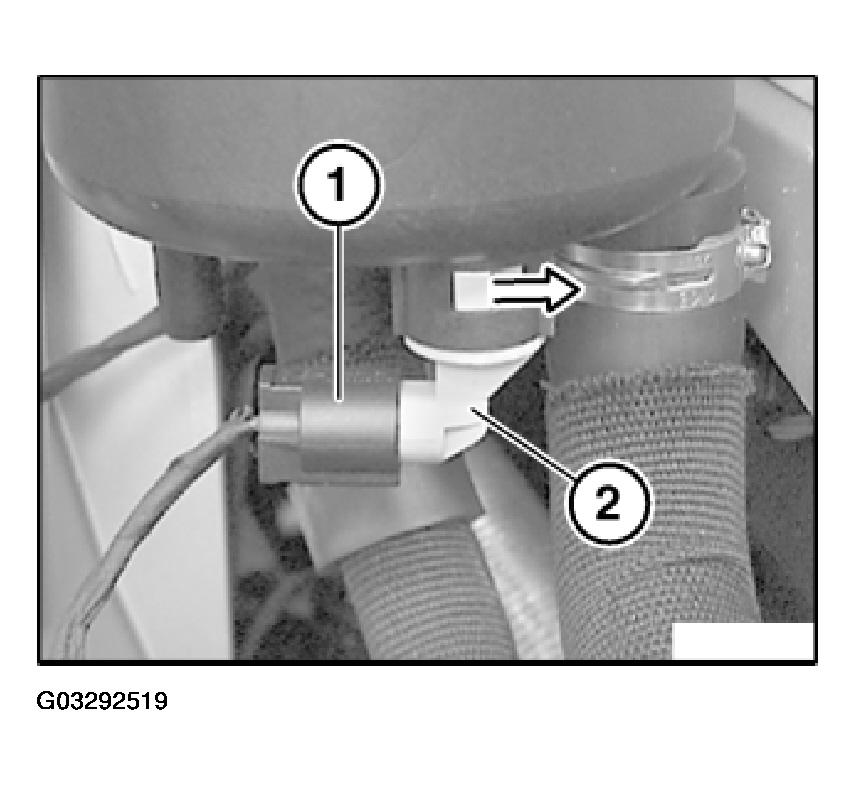

Disconnect connector (1).
Turn level switch (2) through approx. 45° and remove towards bottom.
