32 31 241 Replacing adjusting lever for steering column
Special tools required:
- 32 1 200
- 32 1 204
Remove upper section of steering column trim. Refer to 32 31 003 REPLACING UPPER SECTION OF STEERING COLUMN TRIM .
Remove lower section of steering column trim. Refer to 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN COVER .

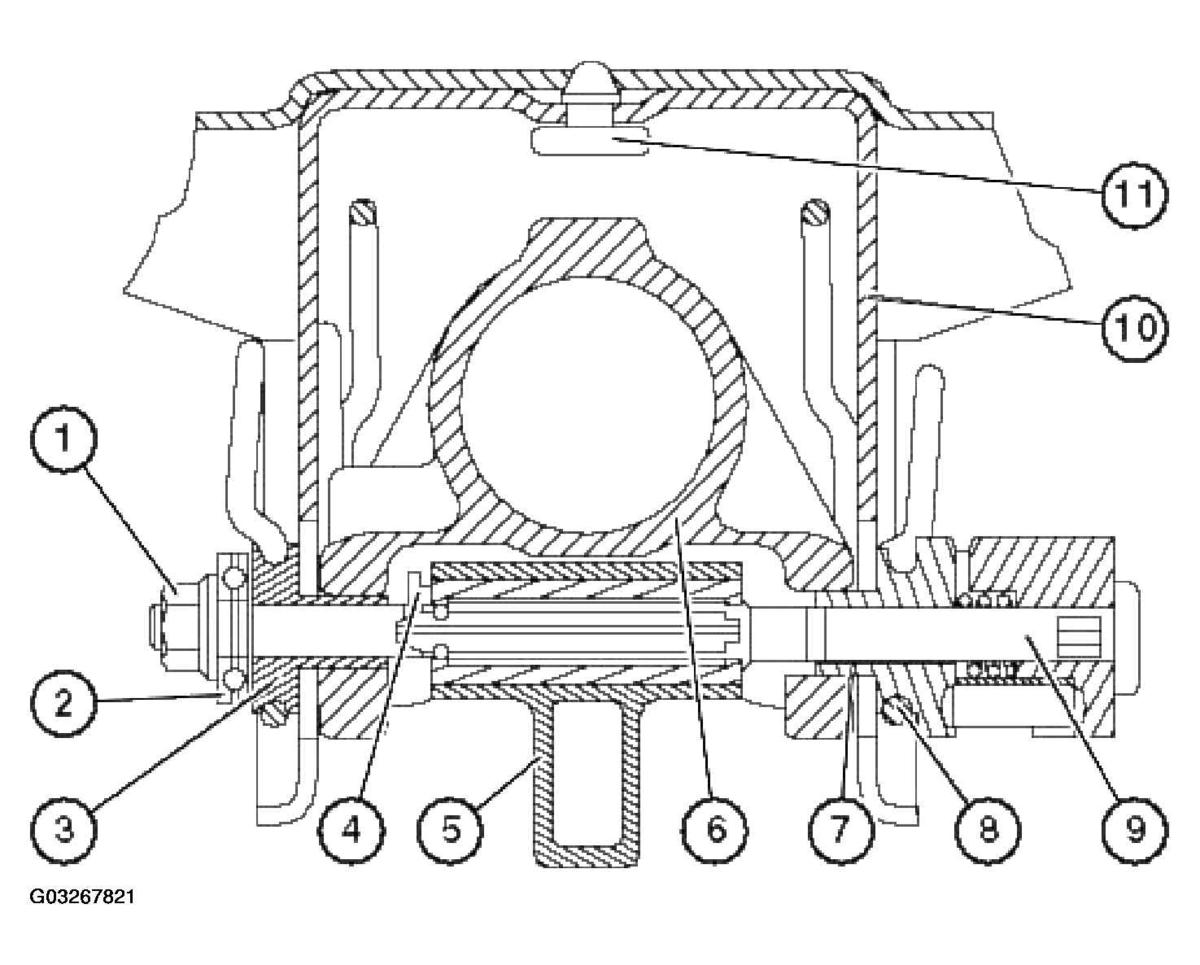

Disconnect torsion springs (8) from both sides.
Slacken nut (1).
Remove axial grooved ball bearing (2) and clamping disc (3).
Remove retainer (4).

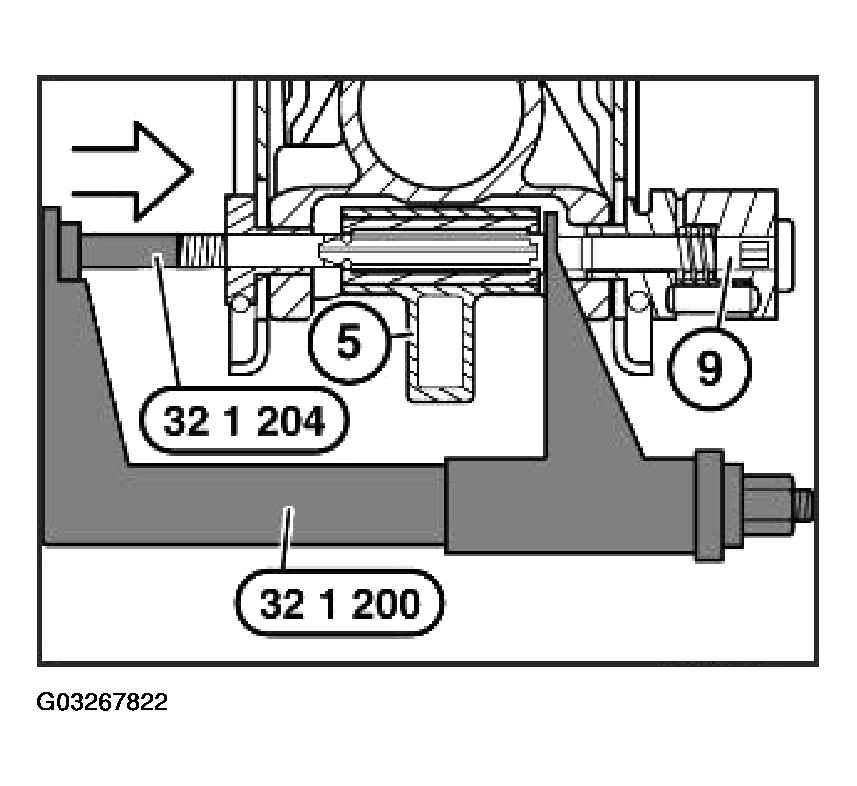

Use special tool 32 1 200 / 32 1 204 to force clamping fixture (9) out of adjusting lever (5).
Grip drive of special tool with open-end wrench.
Adjusting lever points towards steering lock and square section on clamping fixture must be inserted in long slot in steering column tube.

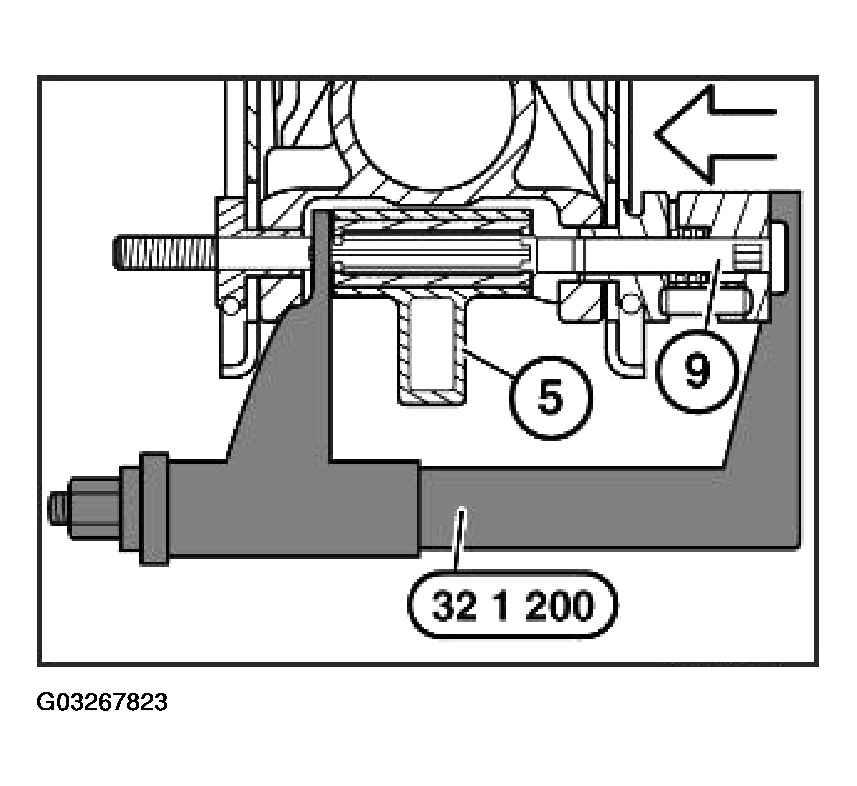

Press clamping fixture (9) into adjusting lever (5) with special tool 32 1 200.
Fit retainer (4), clamping disc (3) and axial grooved ball pivot (2).
Connect torsion spring (8) to both sides.
Tightening torque, 32 31 3AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES . The adjustment of the clamping power takes place by means of the tightening torque.
