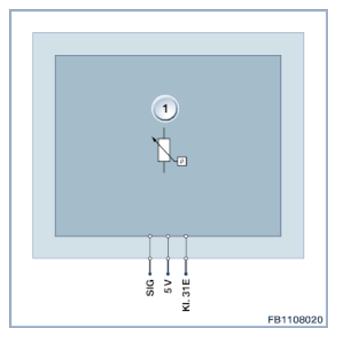

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The engine oil-pressure sensor is connected with a 3-pin plug connector.
The engine control unit supplies the sensor with 5 volts and ground.
| Item | Explanation |
|---|---|
| 1 | Engine-oil pressure sensor |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| SIG | Signal, oil pressure |
| 5 V | 5 Volts, supply voltage |
| Terminal 31E | Terminal 31, electronics earth (ground) |
