84 10 700 Removing and installing/replacing base plate

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2016 BMW 435i xDrive, 2016 BMW 435i, 2016 BMW 428i xDrive, 2016 BMW 428i, and 2015 BMW 435i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

Necessary preliminary tasks:

REMOVE rear center console cover

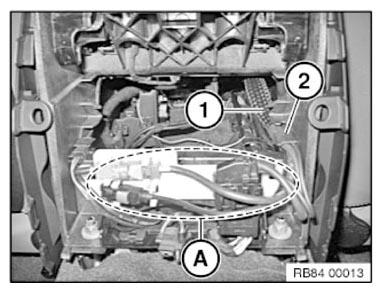

Unlock and disconnect associated plug connections in area (A).

Unclip line (1) at center console (2).

Reach under the base plate and unclip associated line (1) on center console.

Installation note:

Make sure plug connections are correctly seated.

Ensure correct cable routing.

Fig 1: Identifying Center Console Line And Plug Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

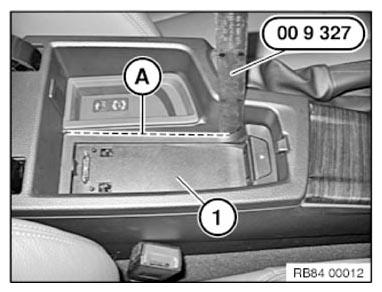

Mount special tool 00 9 327 as illustrated.

Reach from rear under base plate (1).

Carefully leverage out base plate (1) along marked line (A) and simultaneously press lightly from below to disengage latch mechanisms.

Remove base plate (1) and feed out line.

Fig 2: Removing Base Plate

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Center console is shown removed for purposes of clarity.

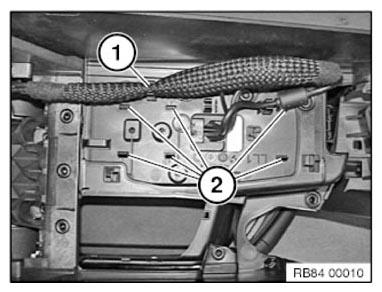

Installation note:

Make sure line (1) is properly routed.

Catches (2) must not be damaged or missing.

Fig 3: Identifying Base Plate Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure base plate is correctly engaged on center console.
