61 31 192 Replacing knob for controller

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

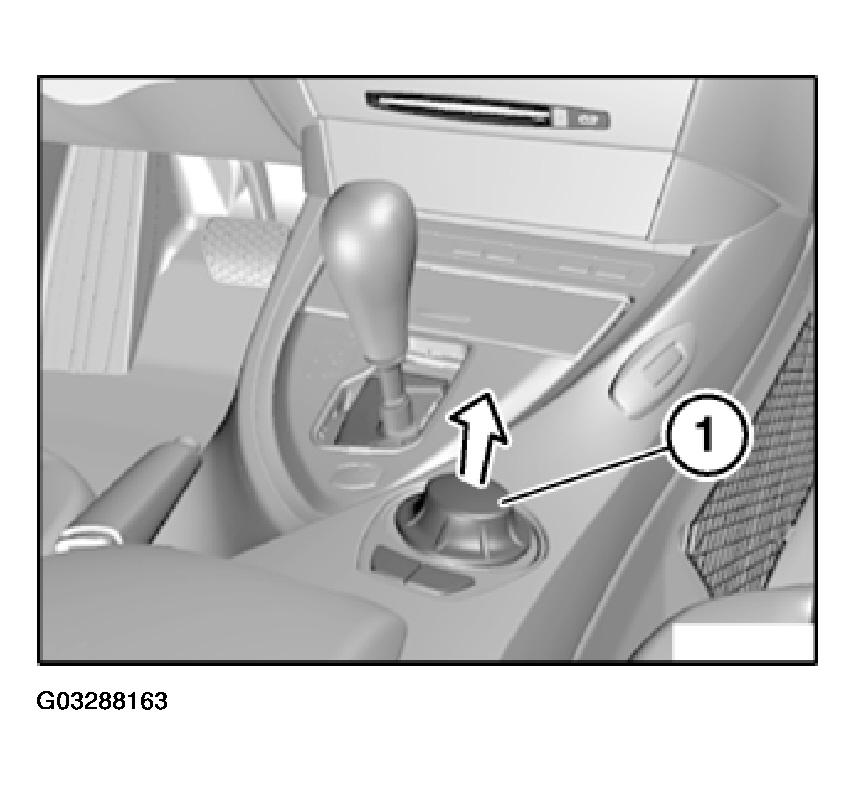

Detach knob for controller (1) in direction of arrow.

Fig 1: Detaching Knob For Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

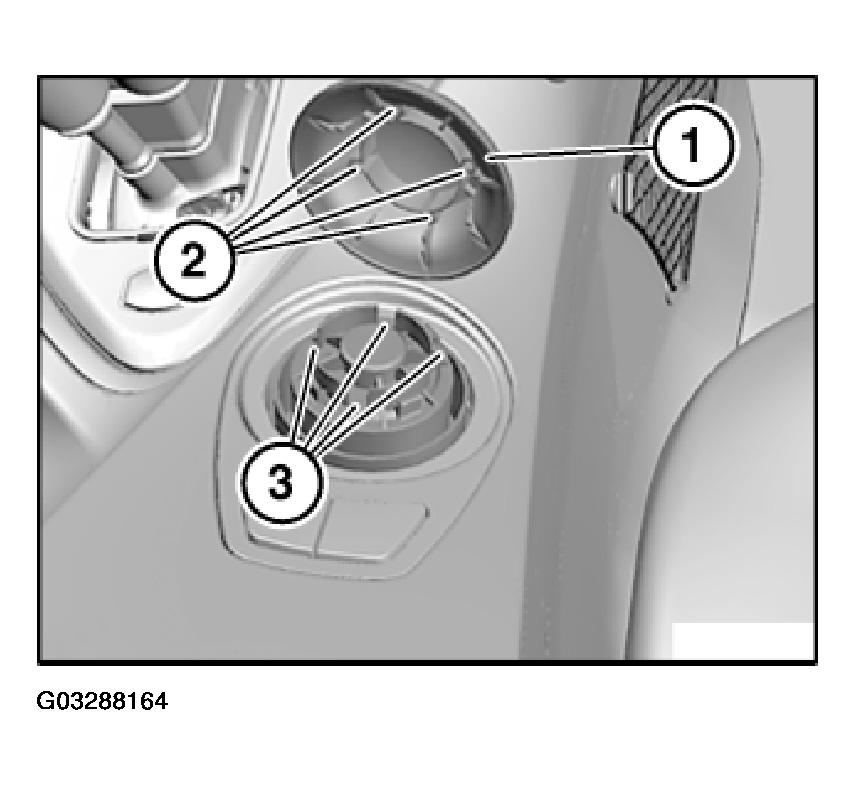

Fit knob for controller (1) so that guides (2) are seated in mountings (3).

Press knob for controller (1) in middle until it engages.

Fig 2: Fitting Knob For Controller So That Guides Are Seated In Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
