61 31 115 Replacing rocker switch for side-window operation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63) .

00 9 341

Carefully lever out rocker switch for side window operation (1) with special tool 00 9 341 at specified points (2).

Remove rocker switch for side window operation (1) from door trim panel (3) slightly.

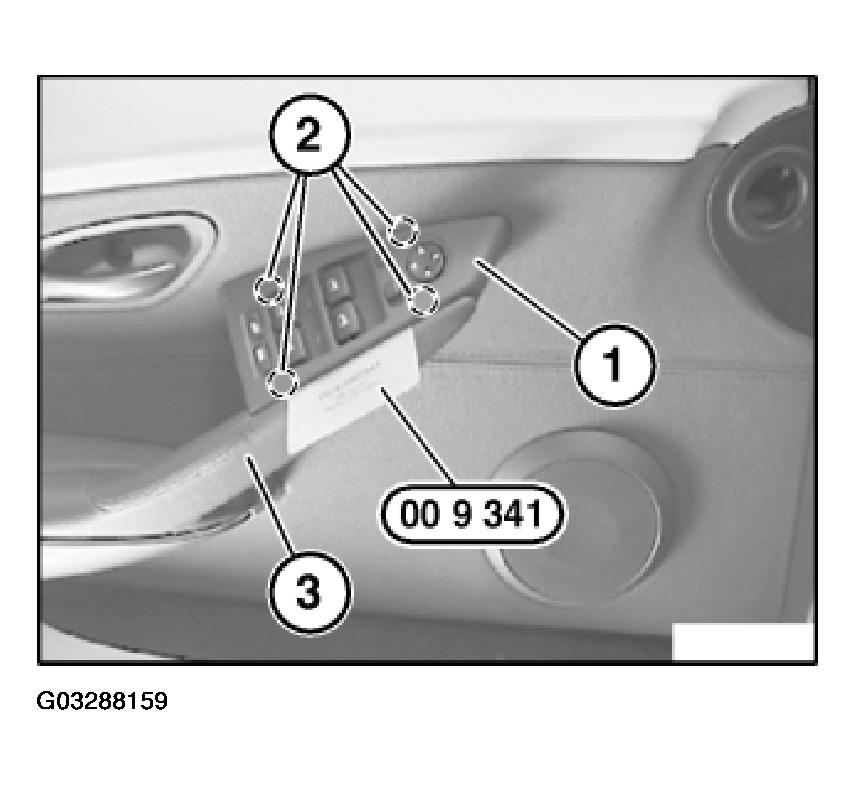

Fig 1: Removing Rocker Switch For Side Window Operation From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and remove rocker switch for side window operation (1).

Installation:

Retaining clips (1) of rocker switch for side window operation (2) must not be damaged.

Make sure rocker switch for side window operation (2) is correctly seated.

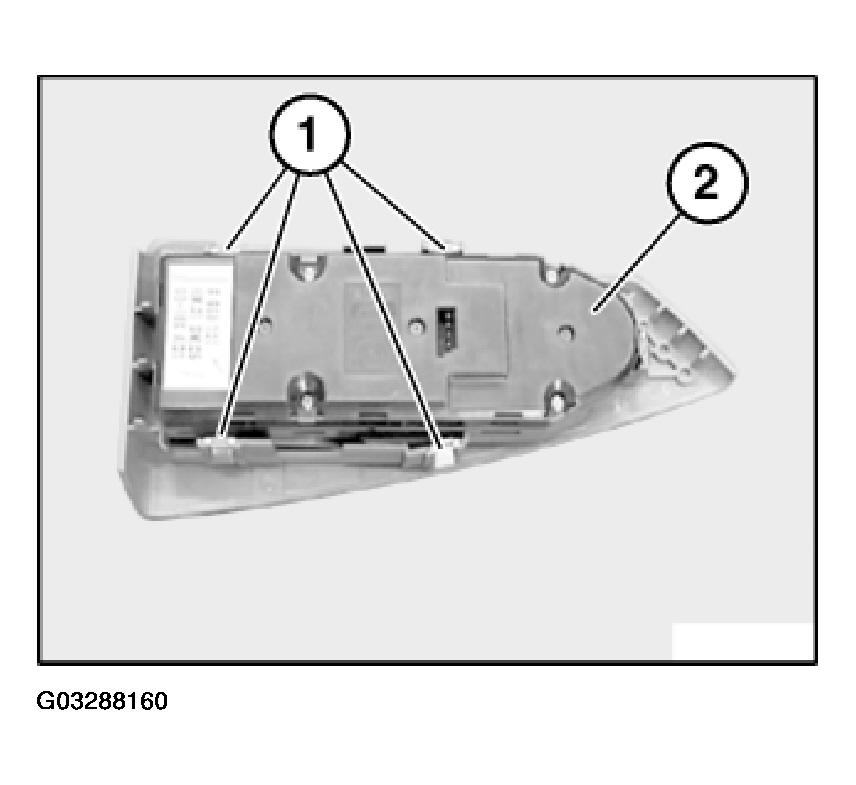

Fig 2: Retaining Clips Of Rocker Switch For Side Window Operation

Courtesy of BMW OF NORTH AMERICA, INC.
