61 31 035 Removing and installing/replacing switch for steering column adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove top section of steering column casing, refer to 32 31 004 REMOVING AND INSTALLING / REPLACING UPPER SECTION OF STEERING COLUMN TRIM .

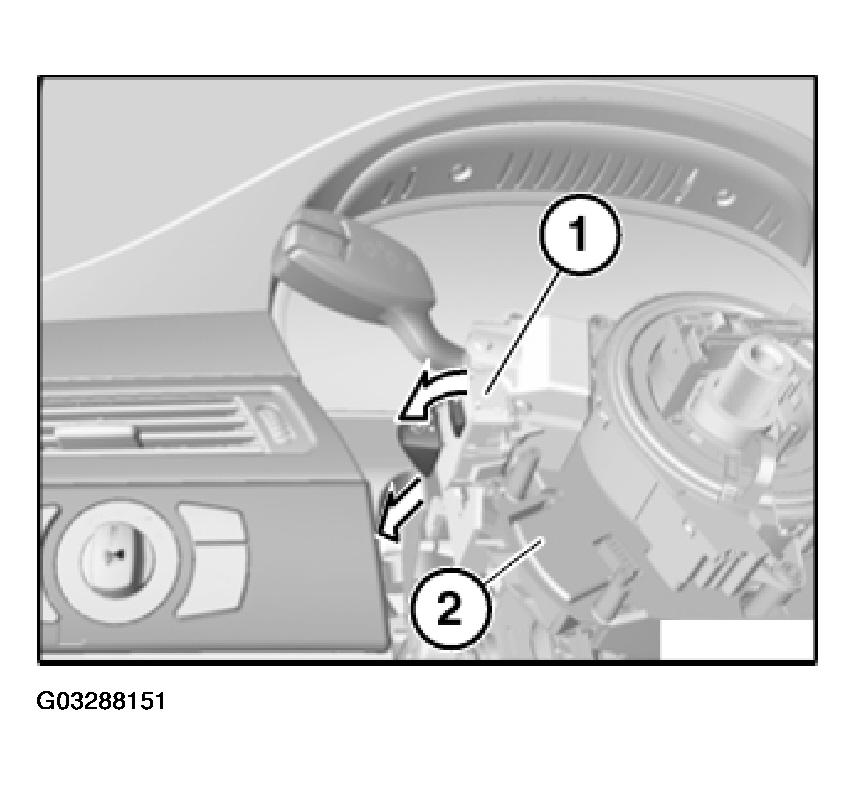

Disconnect associated plug connections of steering column adjustment switch (1).
Unclip steering column adjustment switch (1) in direction of arrow.
Remove steering column adjustment switch (1) towards front from fixture for steering column stalk (2).
