13 62 669 Replacing exhaust temperature sensor on catalytic converter (N57 D30 O/T 1 with SCR)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.

Unlock connector (1) and remove.

Detach cable from clamp.

Release exhaust-gas temperature sensor (2) and remove.

Tightening torque 13 62 4AZ .

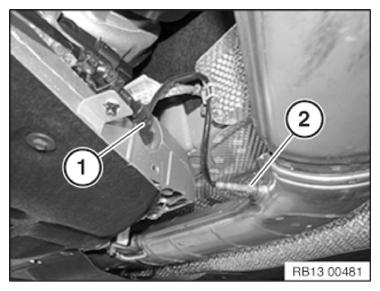

Fig 1: Identifying Exhaust-Gas Temperature Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When installing the exhaust-gas temperature sensor make sure that the gauge tip (1) is not damaged.

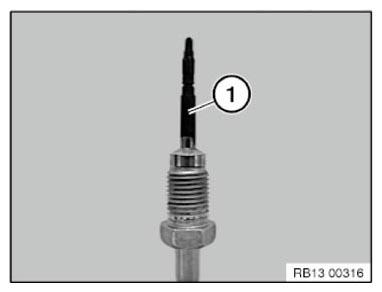

Fig 2: Identifying Exhaust-Gas Temperature Sensor Gauge Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
