84 10 705 Removing and installing/replacing base plate

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Carefully lever out the base plate (1) with special tool 00 9 341 .

Remove base plate (1) upwards.

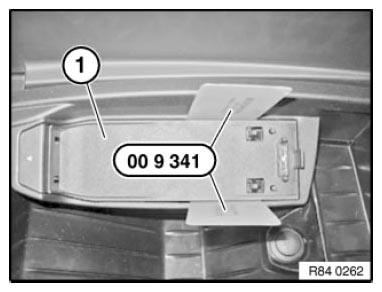

Fig 1: Removing Base Plate
G08487927Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Installation:

Ensure correct cable routing.

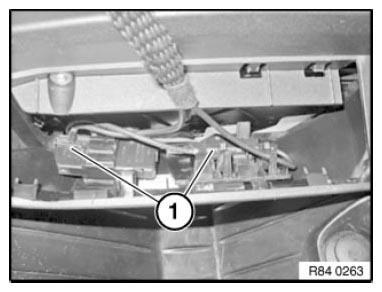

Fig 2: Identifying Plug Connections
G08487928Courtesy of BMW OF NORTH AMERICA, INC.
