Special Tools Instructions

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

1 = Connection, pump

2 = Connection, steering gear

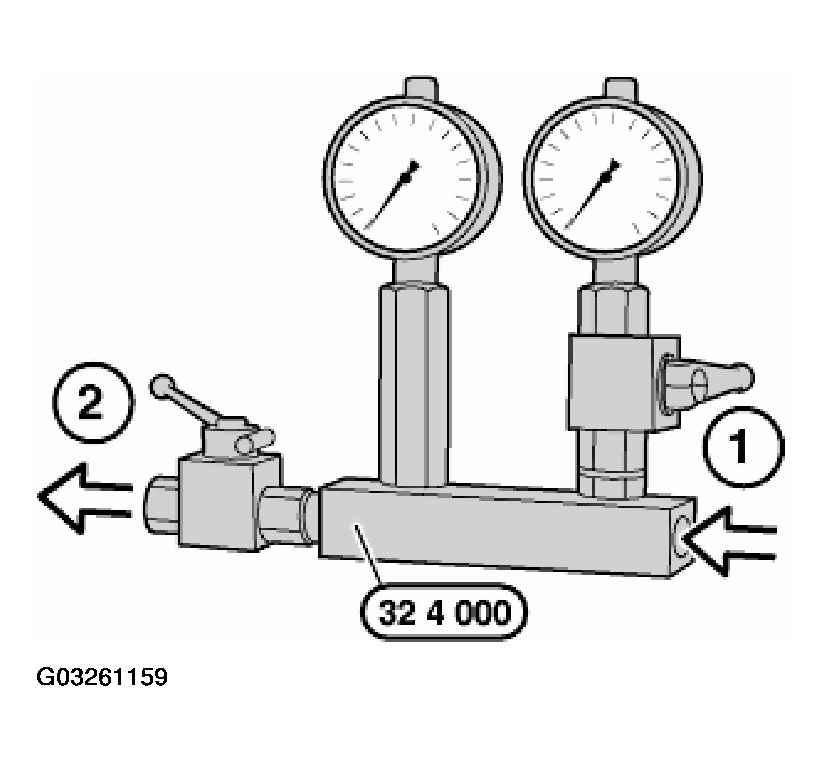

Fig 1: Identifying Special Tool 32 4 000

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M14 x 1.5 banjo bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Screw special tool 32 4 011 onto pump and connect special tool 32 4 004.

Screw special tools 32 4 006 / 32 4 012 onto special tool 32 4 000 and connect pressure hose with M14 x 1.5 banjo bolts and 2 sealing rings.

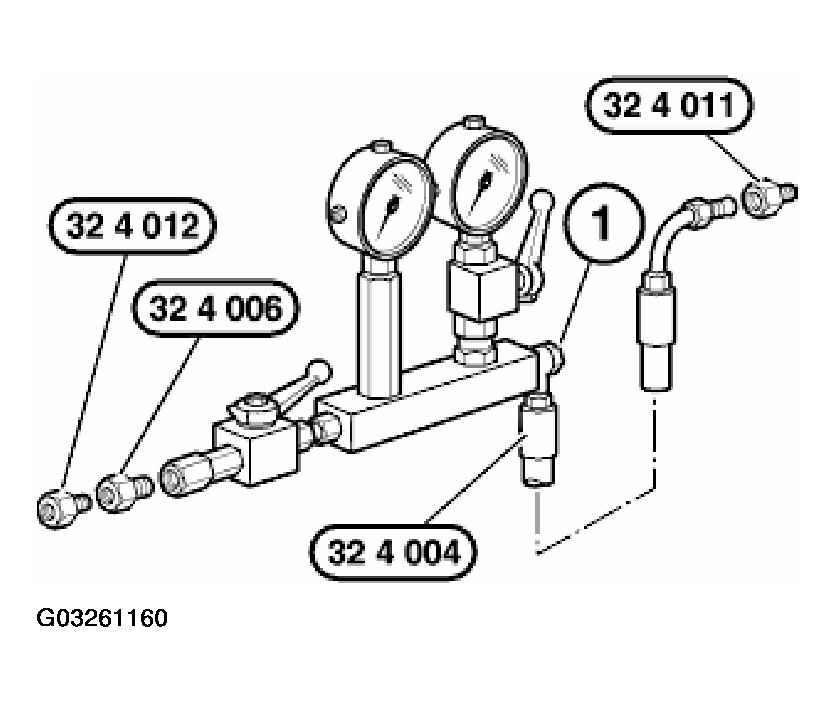

Fig 2: Identifying Pressure Hose Connecting To Pump With M14 X 1.5 Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 banjo bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Screw special tool 32 4 005 onto pump and connect special tool 32 4 004.

Screw special tool 32 4 006 onto special tool 32 4 000 and connect pressure hose with M16 x 1.5 banjo bolt and 2 sealing rings.

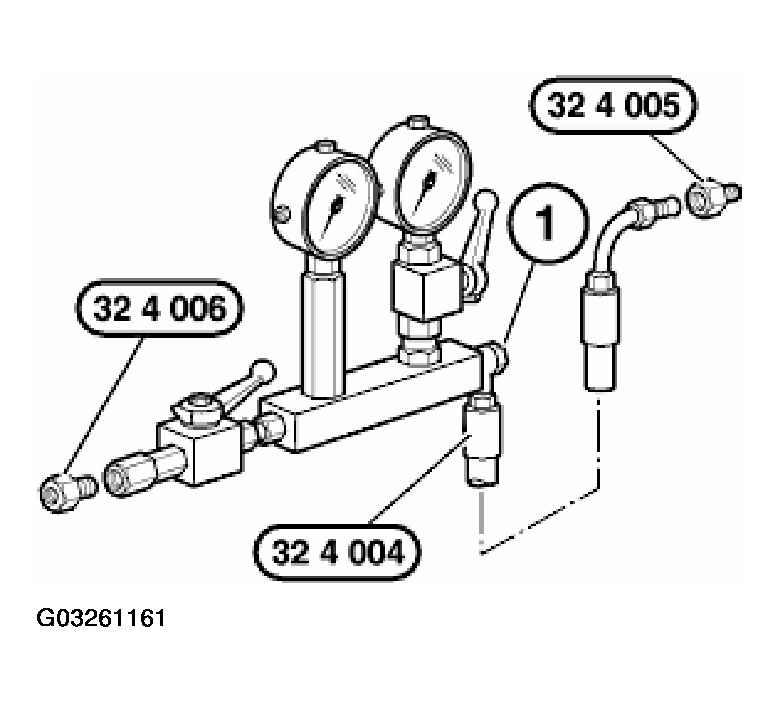

Fig 3: Identifying Pressure Hose Connecting To Pump With M16 X 1.5 Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 union screw:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Connect special tool 32 4 004 to pump.

Screw special tools 32 4 006 / 32 4 005 onto special tool 32 4 000 and connect pressure hose.

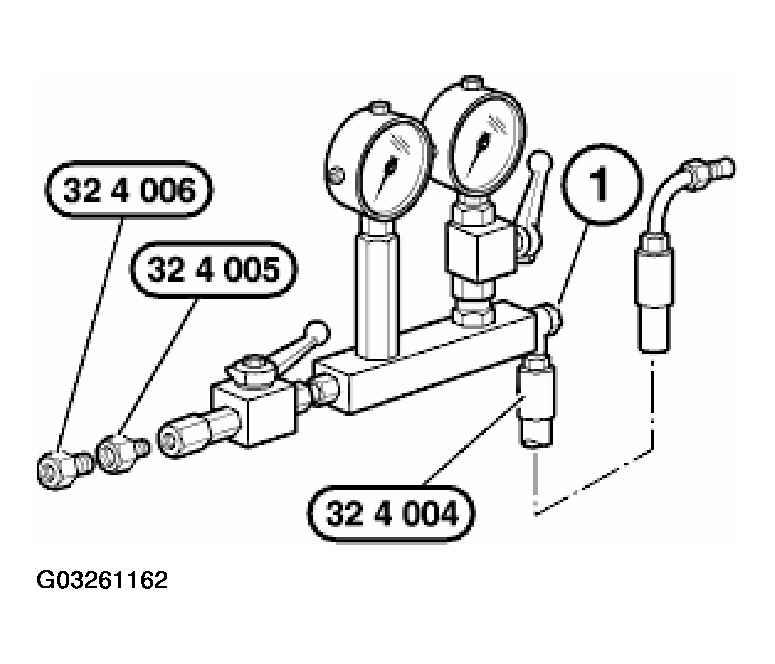

Fig 4: Identifying Pressure Hose Connecting To Pump With M16 X 1.5 Union Screw

Courtesy of BMW OF NORTH AMERICA, INC.
