61-9040 Tool

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

0492908 619040 Tool MP

NOTE: (Tool set for repair range IV) [Discontinued]

SI number

02 02 92 (505)

Consisting of:

4 = 0495195 Die-plate
NOTE: For crimping 2.5 mm (diameter.) sleeves [Released]

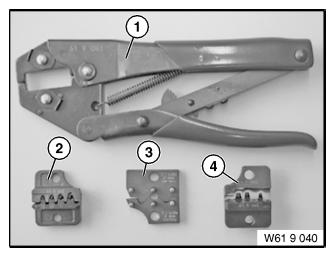

Fig 1: Identifying Tool (0492908)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0492909 Pliers
NOTE: (hand pliers without matrix) [Released]
2 = 0492910 Die-plate
NOTE: For crimping butt connectors and contact tubes for comb connectors (0.35 - 0.5" 0.75 - 1.00" 1.5" 2.5) [Released]
2 = 0492911 Pliers
NOTE: (insulation strippers with wire cutter) Replaced by "MultiStrip 10" insulation strippers with BMW order number 81 69 0 416 257. For all information, see Service Information 08 05 06 259. [Discontinued]
4 = 0493149 Die-plate
NOTE: For crimping aerial connector (plug connection, aerial cable/radio) [Released]
