61 31 231 Removing and installing/renewing steering wheel module control unit

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove airbag unit . See 32 34 030 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (SPORT STEERING WHEEL) or 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT .

NOTE: Steering wheel cover is shown removed for purposes of clarity.

Remove control unit for steering wheel module (1) from steering wheel (2) in direction of arrow.

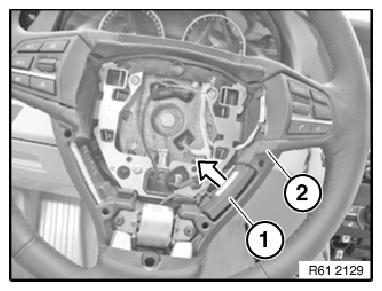

Fig 1: Removing Steering Wheel Module Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove steering wheel electronics control unit (2).

Installation note:

Make sure electronic steering wheel module (2) is fitted correctly.

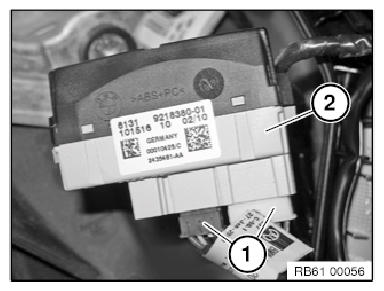

Fig 2: Identifying Electronic Steering Wheel Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
