61 31 196 Removing and installing (replacing) rear controller

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove both switch combinations for seat adjustment. See 61 31 166 Replacing switch combination for seat adjustment (comfort seat in rear compartment .

Release screws (1) on left/right.

Remove wood trim on rear center armrest (2).

Unlock plug connection behind and disconnect.

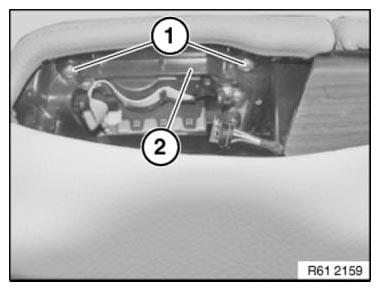

Fig 1: Identifying Rear Centre Armrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Remove rear controller (3) from wood trim on rear center armrest (4).

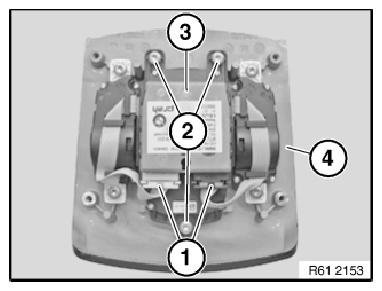

Fig 2: Identifying Rear Controller, Rear Centre Armrest, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
