84 11 610 Removing and installing/replacing eject box (cordless keypad handset)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

If necessary, remove cordless keypad handset from eject box.
Remove fresh air grill in rear compartment. Refer to 64 22 191 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT FRESH AIR GRILL .

If necessary, unlock antenna connector (1) and disconnect.

Unfasten plug connection (2) and disconnect.

Unlock socketing housing on plug connection (2) and slide out contact carrier.

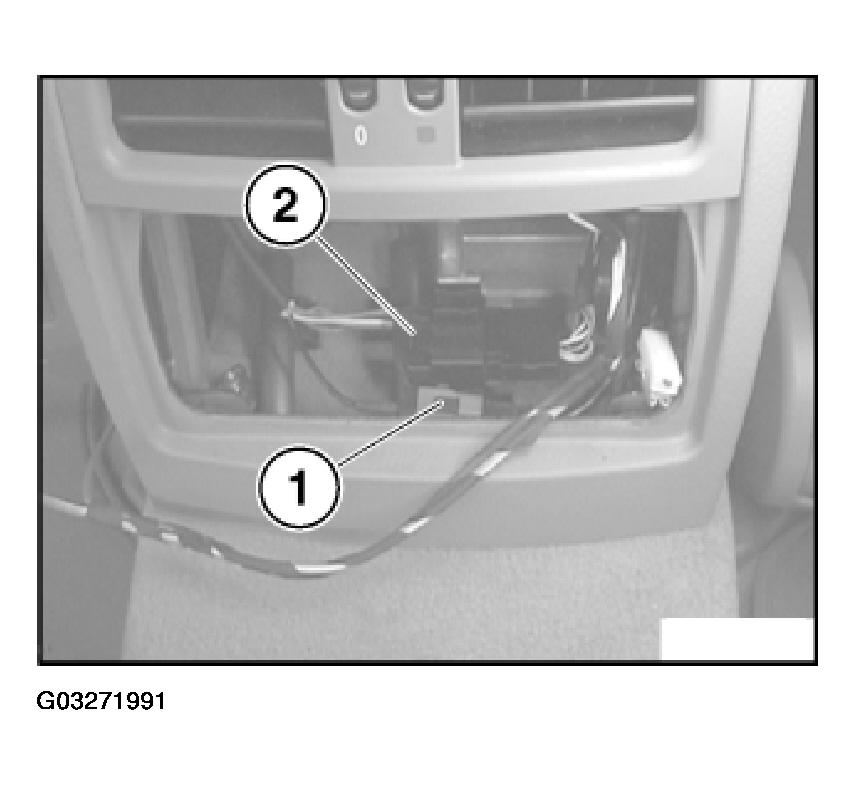

Fig 1: Locating Antenna Connector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Unlock eject box (1) and fold up.

Loosen screws (2).

Feed out plug connection and remove eject box (1).

Installation:

Ensure correct cable routing in eject box (1).

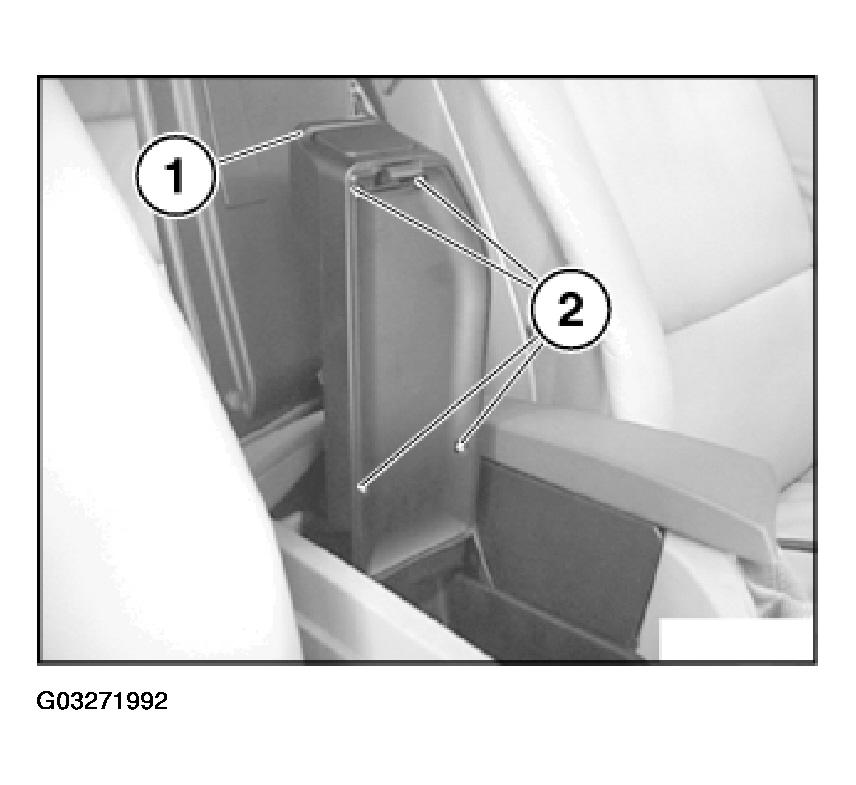

Fig 2: View of Eject Box And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
