32 41... Instructions for using special tool 32 4 000

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

32 4 000
32 4 004
32 4 005
32 4 006
32 4 011
32 4 012

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

= Connection, pump.
= Connection, steering gear.

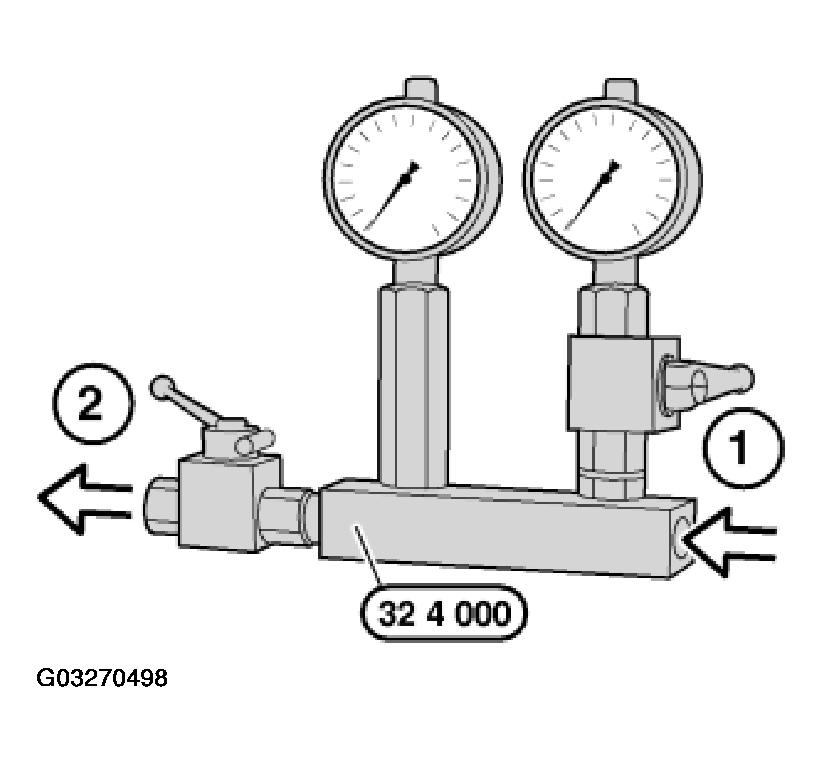

Fig 1: Identifying Assembly Procedure For Special Tool (32 4 000)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure Hose Connection To Pump With M14 X 1.5 Banjo Bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Screw special tool 32 4 011 onto pump and connect special tool 32 4 004.

Screw special tools 32 4 006 / 32 4 012 onto special tool 32 4 000 and connect pressure hose with M14 x 1.5 banjo bolts and 2 sealing rings.

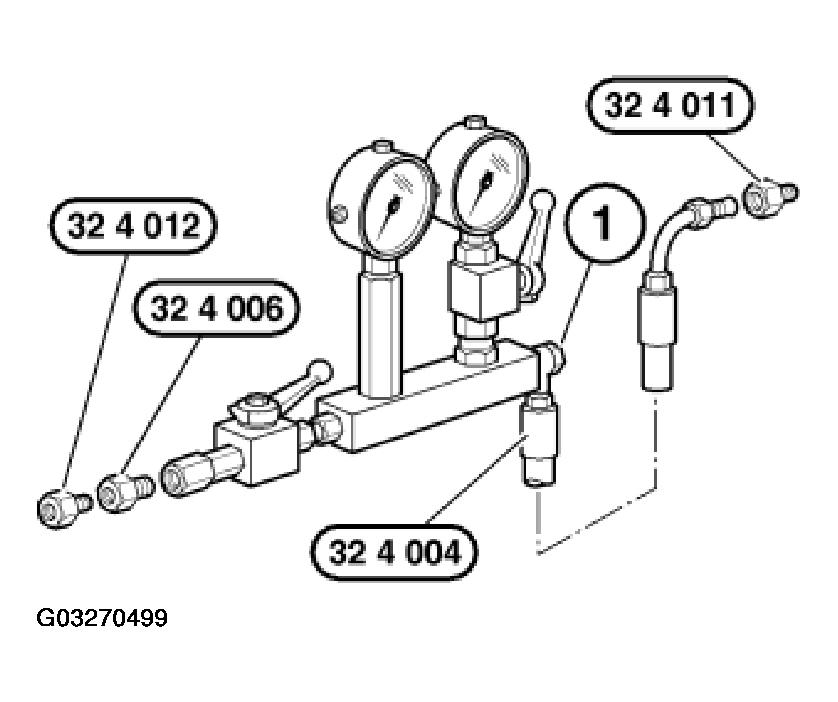

Fig 2: Identifying Connection To Pump With M14 X 1.5 Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure Hose Connection To Pump With M16 X 1.5 Banjo Bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Screw special tool 32 4 005 onto pump and connect special tool 32 4 004.

Screw special tool 32 4 006 onto special tool 32 4 000 and connect pressure hose with M16 x 1.5 banjo bolt and 2 sealing rings.

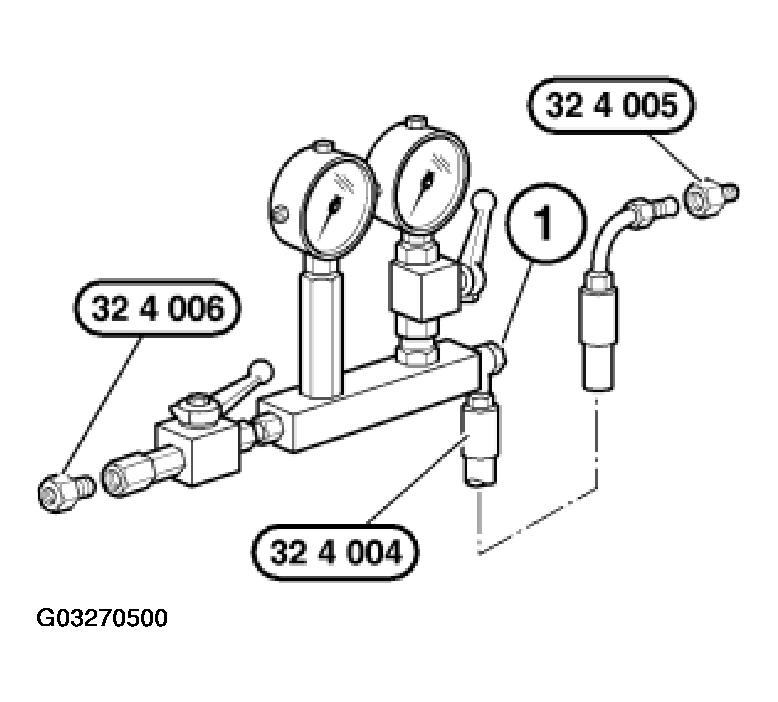

Fig 3: Identifying Connection To Pump With M16 X 1.5 Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure Hose Connection To Pump With M16 X 1.5 Union Screw:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Connect special tool 32 4 004 to pump.

Screw special tools 32 4 006 / 32 4 005 onto special tool 32 4 000 and connect pressure hose.

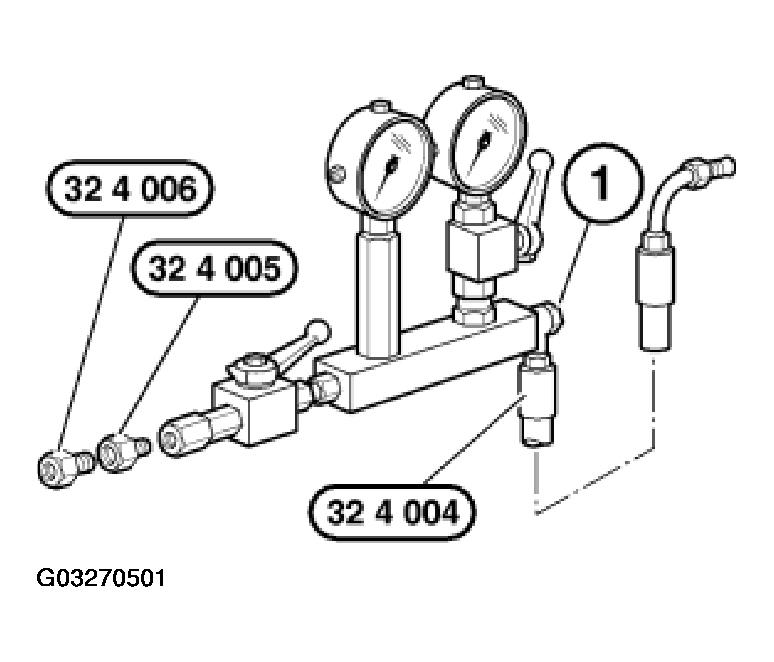

Fig 4: Identifying Connection To Pump With M16 X 1.5 Union Screw

Courtesy of BMW OF NORTH AMERICA, INC.
