25 11 001 Replacing complete shift lever

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove selector lever.
Remove vibration damper (if fitted).

Detach mount from selector lever.

Installation:

Grease ball joint.

Grease,

Fig 1: Detaching Mount From Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber gaiter from selector lever.

Fig 2: Identifying Rubber Gaiter From Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

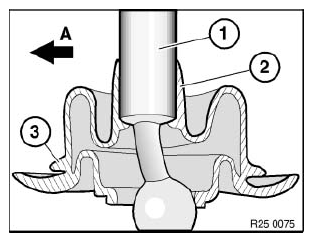

Degrease selector lever (1).

Coat rubber bellows on inside of shaped section (2) with Circolight.

Pull rubber gaiter from above over selector lever and align. Arrow (3) on rubber gaiter must point in direction of travel (A).

Fig 3: Identifying Selector Lever And Shaped Section

Courtesy of BMW OF NORTH AMERICA, INC.
