65 83 570 Removing and installing/replacing CD drive for Car Communication Computer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) !

Necessary preliminary tasks:

Remove FRONT TRIM FOR CAR COMMUNICATION COMPUTER

If necessary, cut through warranty seal.

Raise cover (1) with special tool 64 1 020 all round and remove from Car Communication Computer (2).

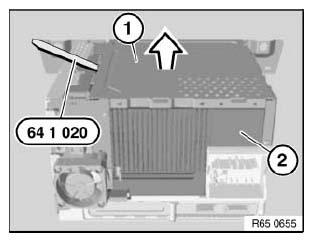

Fig 1: Raising Cover With Special Tool 64 1 020

G04727981

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1).

Feed CD drive for Car Communication Computer (2) in direction of arrow out of Car Communication Computer (3) and set down.

Installation:

Ensure correct routing of cables.

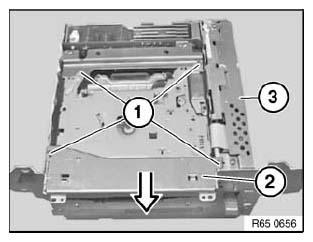

Fig 2: Feeding CD Drive For Car Communication Computer

G04727982

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1).

Remove CD drive trim (2) in direction of arrow from CD drive for Car Communication Computer (3).

Installation:

Ensure correct routing of cables.

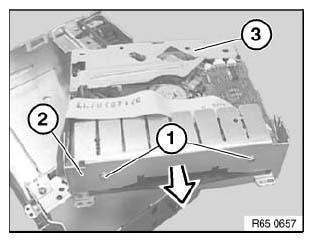

Fig 3: Removing CD Drive Trim

G04727983

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through warranty seal (1) at marked point.

Release screw (2).

Lift side cover out of mounting (3) and carefully place to one side.

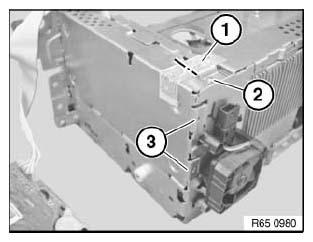

Fig 4: Identifying Warranty Seal, Screw And Side Cover Out Of Mounting

G04727984

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove CD drive.

Installation:

Ensure correct routing of cables.

Fig 5: Identifying Plug Connection

G05505202
