61 0 210 Matrix LSK 8

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 61 0 202 (crimping tool)

Note: (crimping insert set for load current contact 8)

SI number: 02 02 05 (194)

Order number: 61 0 210

Matrix LSK 8

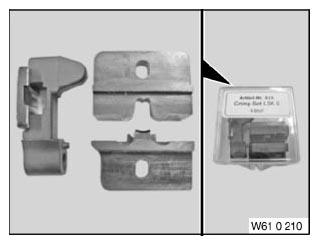

Fig 1: Identifying Matrix LSK 8 (61 0 210)
G04739535Courtesy of BMW OF NORTH AMERICA, INC.
