61 67 200 Removing And Installing/Replacing Spray Nozzle For Night Vision Camera

WARNING: This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010

Necessary preliminary tasks:

Remove front bumper trim . See 51 11 156 REMOVING AND INSTALLING/REPLACING FRONT BUMPER TRIM (BMW ALPINA B7) .

To prevent excess escape of washer fluid, seal off end of high pressure line with special tool 13 3 010 .

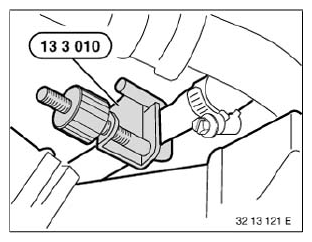

Fig 1: Identifying Special Tool (13 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Night vision camera removed for purposes of clarity.

Press retainer (1) and detach high-pressure line (2) from high pressure nozzle.

Fig 2: Identifying Retainer And High-Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove high-pressure nozzle (2).

Installation:

New spray nozzles are already preset.

Check function.

Fig 3: Identifying High-Pressure Nozzle And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
