84 11 550 Removing and installing/replacing hands-free microphone

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

64 1 020

Model Without Slide/Tilt Sunroof:

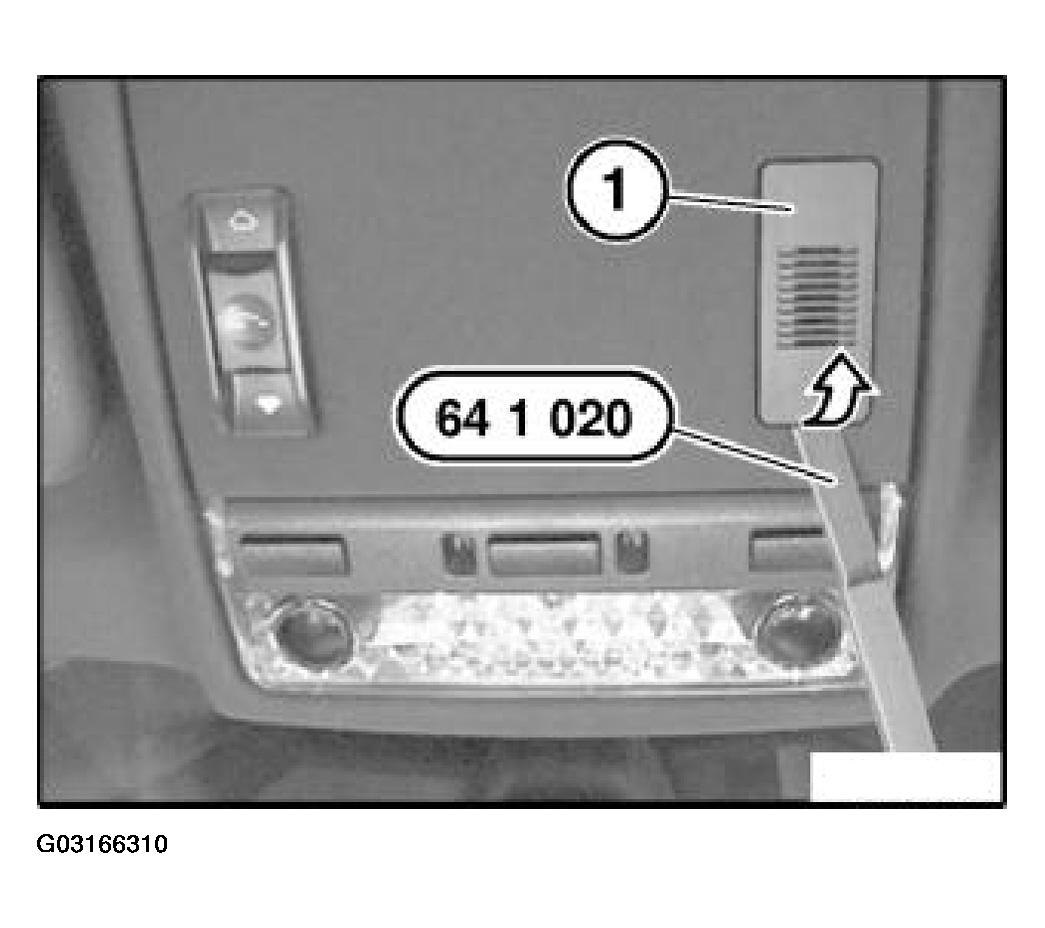

Lever out microphone trim (1) with special tool 64 1 020 in direction of arrow and remove.

Fig 1: Levering Out Microphone Trim (1) With Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath.

Replacement:

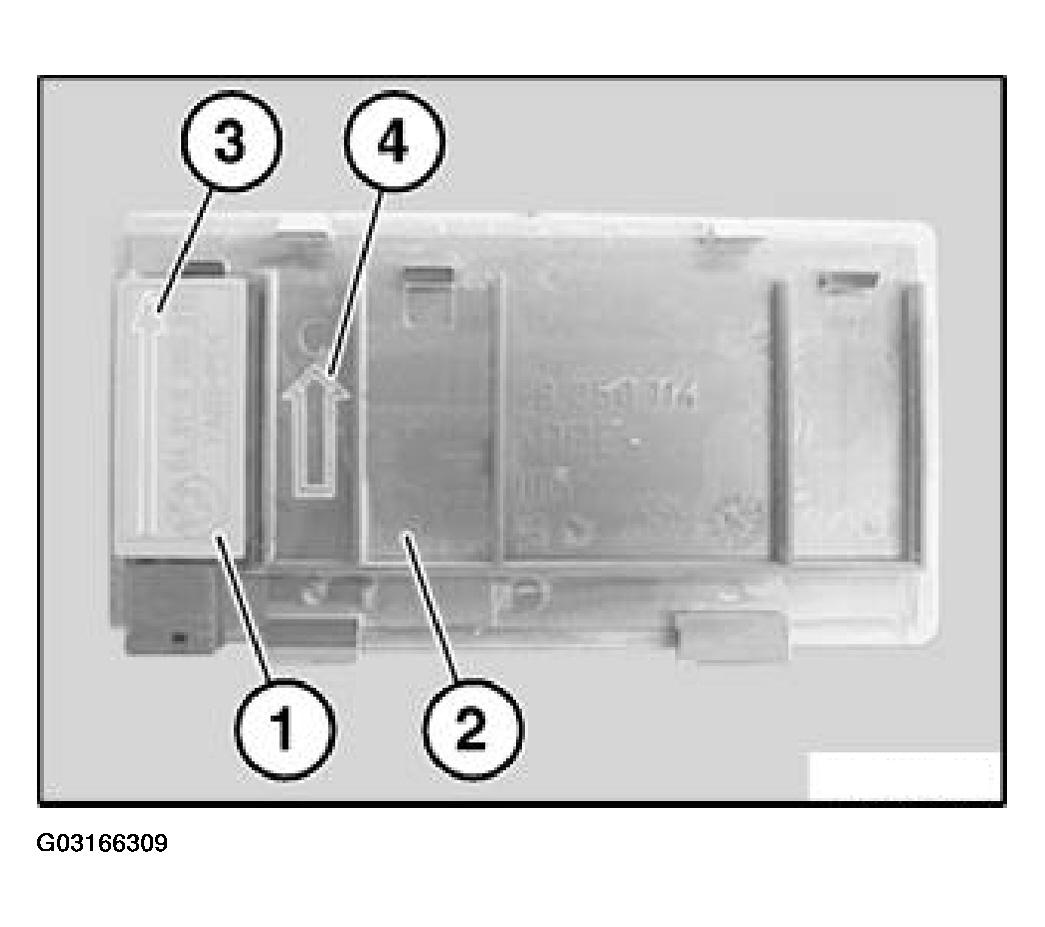

Unclip hands-free microphone (1) and remove from microphone trim (2).

Fig 2: Removing From Microphone Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Arrow (3) of hands-free microphone (1) and arrow (4) of microphone trim (2) point in driving direction.

Version With Slide/Tilt Sunroof:

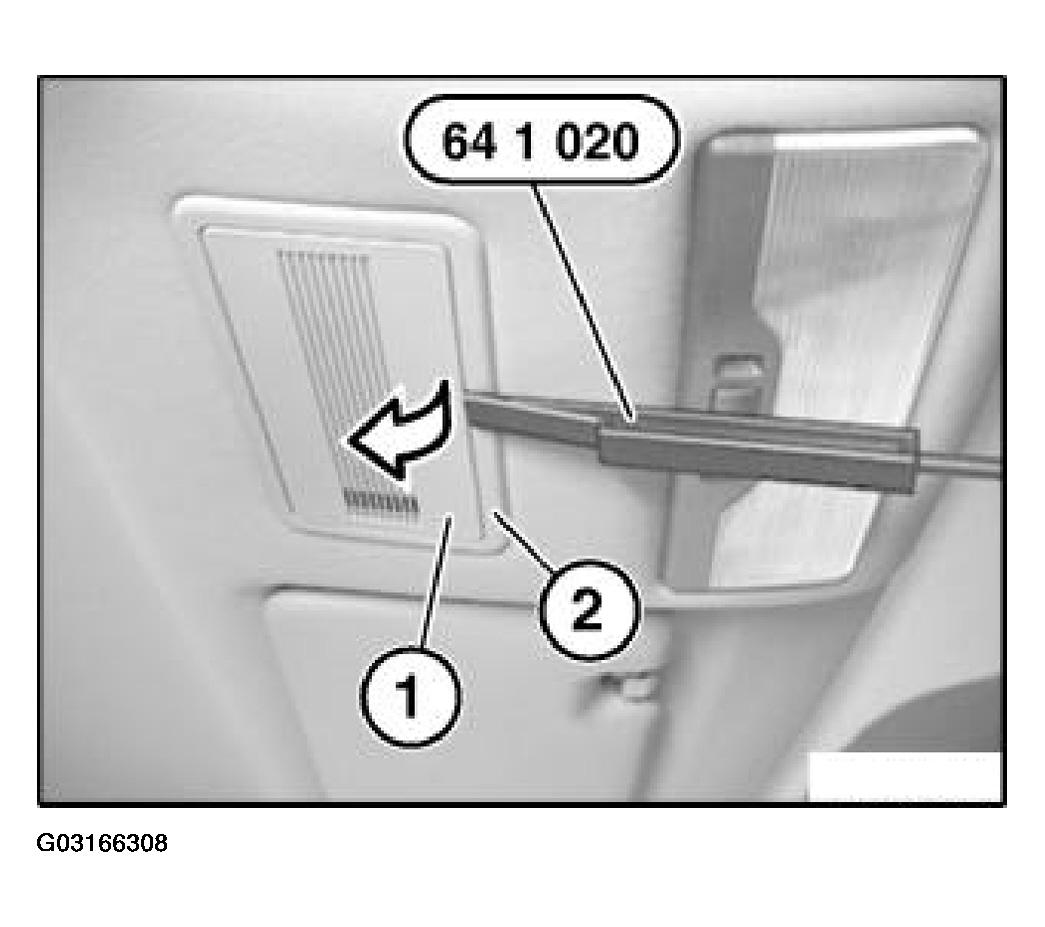

Lever out microphone trim (1) with special tool 64 1 020 in direction of arrow and remove.

Fig 3: Levering Out Microphone Trim (1) With Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath.

Replacement:

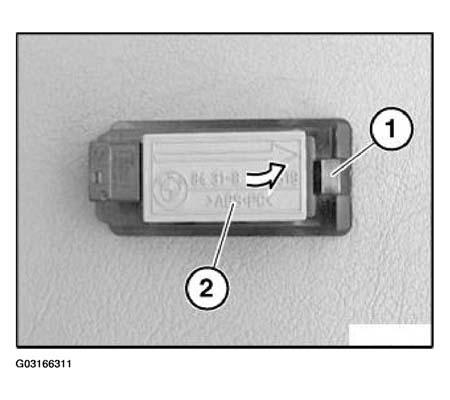

Unlock detent lug (1) and feed out hands-free microphone (2) in direction of arrow.

Fig 4: Unlocking Detent Lug And Feed Out Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Arrow on hands-free microphone (2) points in driving direction.
